REAR FENDER PANEL INSTALLATION [PANEL REPLACEMENT]

id098008745000

Symbol Mark

am6zzb00000535

Installation Procedure

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Before installing new parts, apply spot weld sealer shown in the figure.

am3zzb00000247

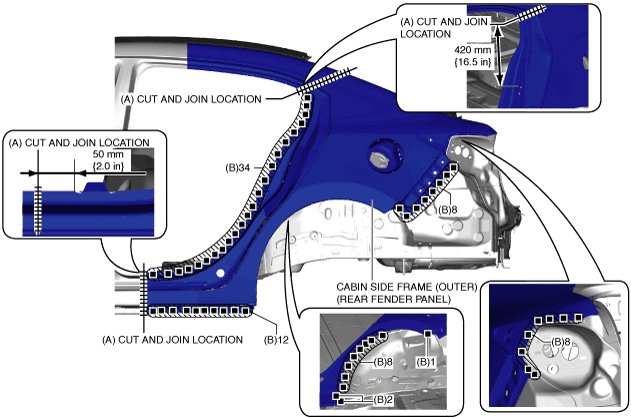

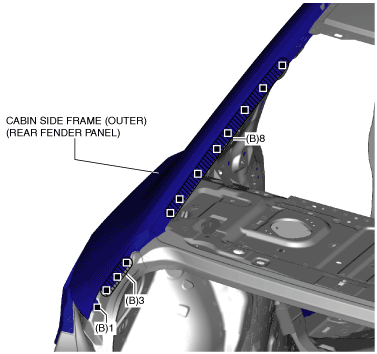

5.  Plug weld the 83 locations indicated by (B) shown in the figure, then install the cabin side frame (rear fender panel).

am3uub00000358

am3zzb00000141

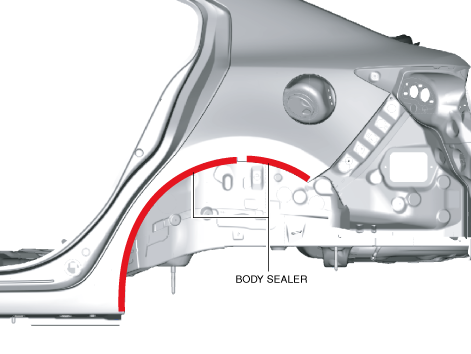

6.  Apply body sealer to the wheel arch line.

am3zzb00000248

5HB

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

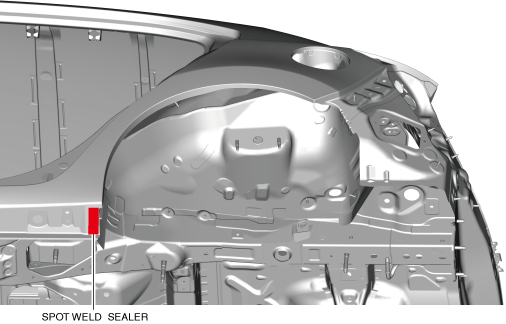

4.  Before installing new parts, apply spot weld sealer shown in the figure.

am3zzb00000249

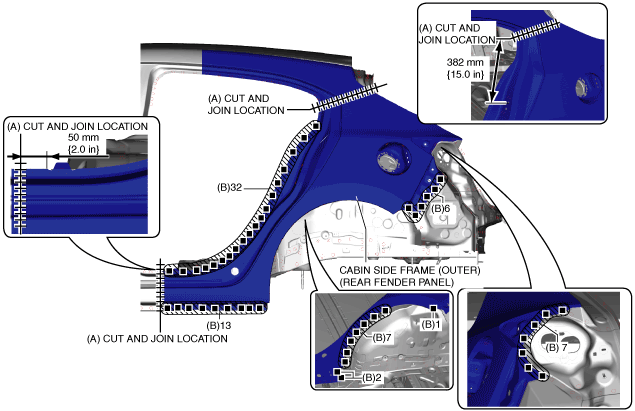

5.  Cut and join the 2 locations indicated by (A) shown in the figure.

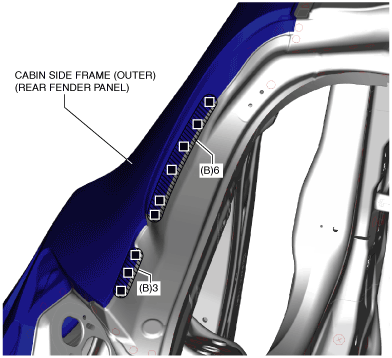

6.  Plug weld the 77 locations indicated by (B) shown in the figure, then install the cabin side frame (outer) (rear fender panel).

am3uub00000361

am3uub00000362

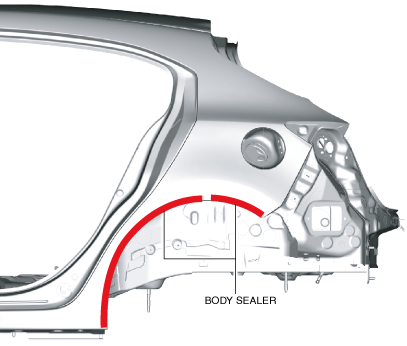

7.  Apply body sealer to the wheel arch line.

am3zzb00000250
