WHEEL APRON COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008746000

Symbol Mark

am6zzb00000341

Removal Procedure

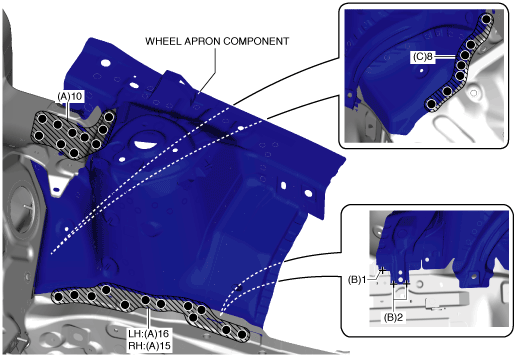

1.  Drill the 26 locations (LH), 25 locations (RH) indicated by (A) from the wheel housing shown in the figure.

2.  Drill the 3 locations indicated by (B) shown in the figure.

3.  Drill the 8 locations indicated by (C) from the wheel housing shown in the figure.

am3zzb00000118

4.  Remove the wheel apron component.
