FRONT FRAME (REAR) COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008752600

Symbol Mark

am6zzb00000375

Removal Procedure

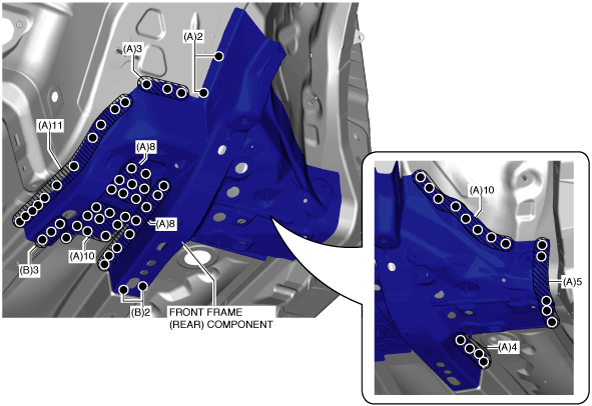

1.  Drill the 61 locations indicated by (A) shown in the figure.

2.  Drill the 5 locations indicated by (B) shown in the figure.

Caution

•  When drilling the 5 locations indicated by (B) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

am3uub00000307

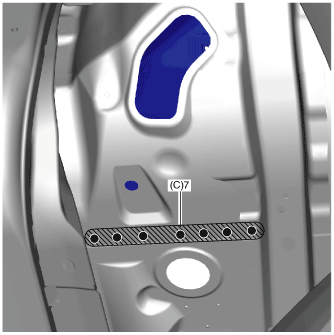

3.  Drill the 7 locations indicated by (C) from the room side shown in the figure.

am3zzb00000156

4.  Remove the front frame (rear) component.
