FRONT FRAME (REAR) COMPONENT INSTALLATION [PANEL REPLACEMENT]

id098008752700

Symbol Mark

am6zzb00000531

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

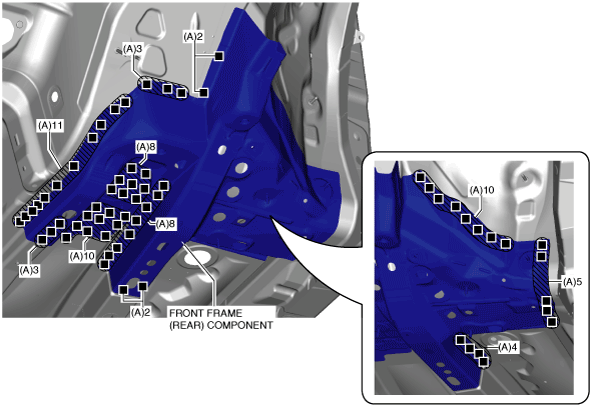

4.  Plug weld the 66 locations indicated by (A) shown in the figure, then install the front frame (rear).

am3uub00000309

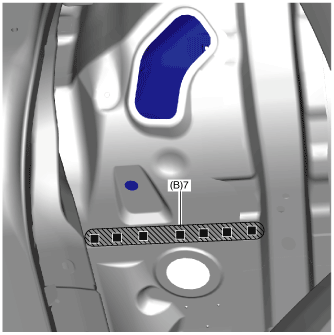

5.  Plug weld the 7 locations indicated by (B) from the room side shown in the figure, then install the front frame (rear) component.

am3zzb00000157
