PACKAGE GUSSET REMOVAL [PANEL REPLACEMENT]

id098008820000

Symbol Mark

am6zzb00000431

Removal Procedure

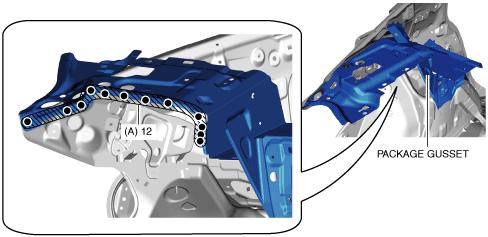

1.  Drill the 12 locations indicated by (A) shown in the figure.

am3zzb00000180

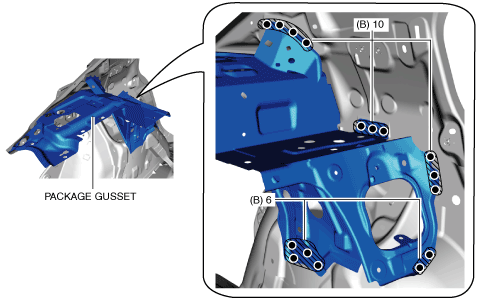

2.  Drill the 16 locations indicated by (B) shown in the figure.

am3zzb00000181

3.  Remove the package gusset.
