REAR SIDE PANEL INSTALLATION [PANEL REPLACEMENT]

id098008829200

Symbol Mark

am3uub00000415

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

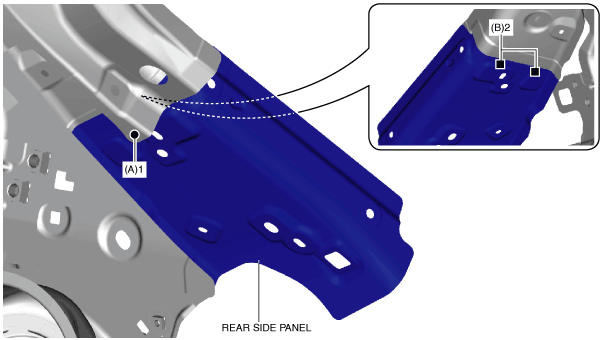

4.  Spot weld the 1 location indicated by (A) shown in the figure.

5.  Plug weld the 2 locations indicated by (B) from room side shown in the figure, then install the rear side panel.
