TRUNK FLOOR PANEL REMOVAL [PANEL REPLACEMENT]

id098008829500

Symbol Mark

am6zzb00000467

Removal Procedure

4SD

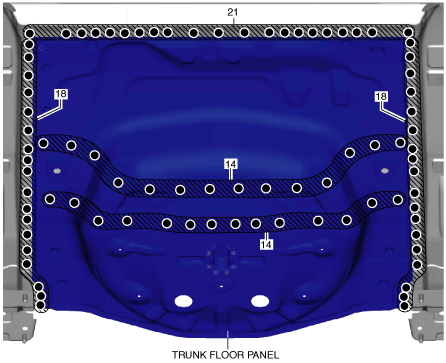

1.  Drill the 85 locations shown in the figure.

Note

•  When drilling the 85 locations indicated shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

am3uub00000427

2.  Remove the trunk floor panel.

5HB

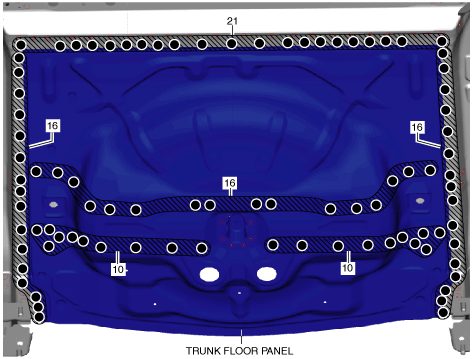

1.  Drill the 89 locations indicated shown in the figure.

Note

•  When drilling the 89 locations indicated shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

am3uub00000428

2.  Remove the trunk floor panel.
