TRUNK FLOOR PANEL INSTALLATION [PANEL REPLACEMENT]

id098008829600

Symbol Mark

am6zzb00000541

Installation Procedure

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

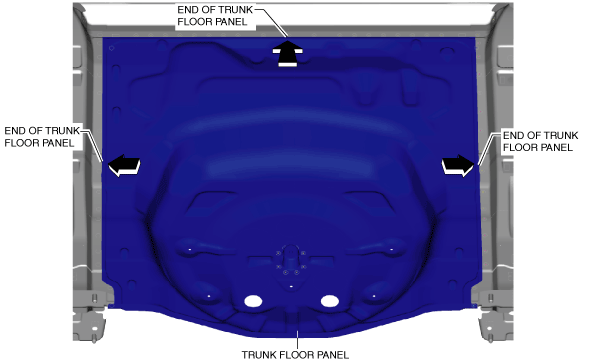

4.  Slide the end of trunk floor panel in the direction of arrow shown in the figure, and then insert it.

am3uub00000429

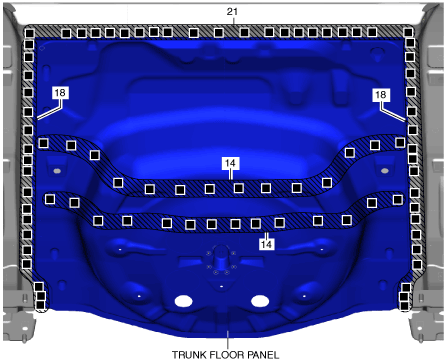

5.  Plug weld the 85 locations indicated shown in the figure, then install the trunk floor panel.

am3zzb00000174

5HB

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

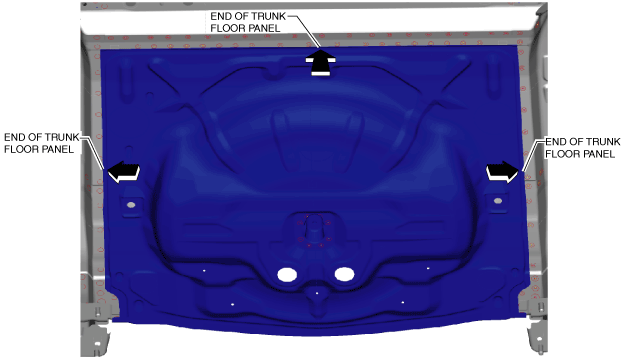

4.  Slide the end of trunk floor panel in the direction of arrow shown in the figure, and then insert it.

am3uub00000431

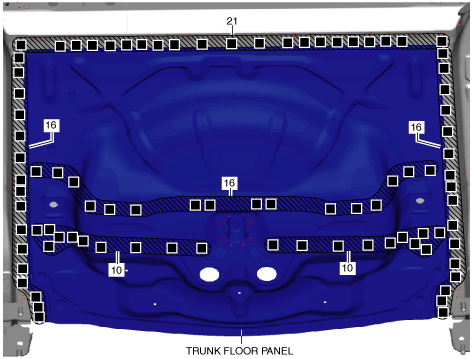

5.  Plug weld the 89 locations indicated shown in the figure, then install the trunk floor panel.

am3zzb00000175
