COWL SIDE REINFORCEMENT (UPPER) REMOVAL [PANEL REPLACEMENT]

id098008829700

Symbol Mark

am3uub00000295

Removal Procedure

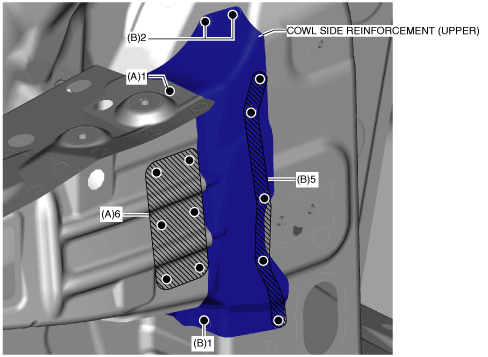

1.  Drill the 7 locations indicated by (A) shown in the figure.

2.  Drill the 8 locations indicated by (B) shown in the figure.

Note

•  When drilling the 8 locations indicated by (B) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

am3uub00000296

3.  Remove the cowl side reinforcement (upper).
