SHROUD UPPER REINFORCEMENT INSTALLATION [PANEL REPLACEMENT]

id098008928000

Symbol Mark

am6zzb00000522

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

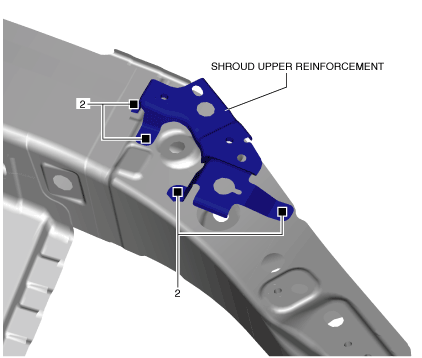

4.  Plug weld 4 locations shown in the figure, then install the shroud upper reinforcement.

am3uub00000017
