COWL UPPER PLATE REMOVAL [PANEL REPLACEMENT]

id098008957100

Symbol Mark

am6zzb00000362

Removal Procedure

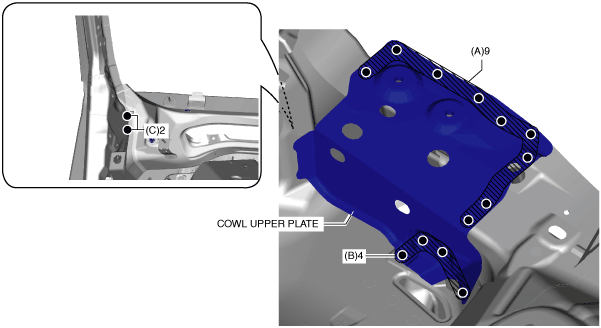

1.  Drill the 9 locations indicated by (A) shown in the figure.

2.  Drill the 4 locations indicated by (B) shown in the figure.

3.  Drill the 2 locations indicated by (C) from the inside shown in the figure, then remove the cowl plate (upper).
