BUMPER BRACKET REMOVAL [PANEL REPLACEMENT]

id098008999500

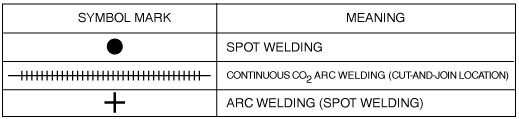

Symbol Mark

am3uub00000292

Removal Procedure

1.  Grind the 6 locations indicated by (A) shown in the figure.

Caution

•  When grinding 6 locations indicated by (A) shown in the figure and the front side frame is damaged, there is a possibility that attachment of a bracket may become difficulty. When grinding 6 locations indicated by (A) shown in the figure, the amount removed will affect the quality of the installation.

am3zzb00000116

2.  Drill the 2 locations indicated by (B) shown in the figure.

3.  Grind the 2 locations indicated by (C) shown in the figure.

4.  Drill the 1 location indicated by (D) shown in the figure.

5.  Drill the 6 locations indicated by (E) shown in the figure.

6.  Remove the bumper bracket.
