SOUND DUMPING SHEET REPLACEMENT [WATER-PROOF AND RUST PREVENTIVE]

id098009755700

• After repairing the body, attach the sound dumping sheet to the location shown in the figure for noise insulation.

4SD

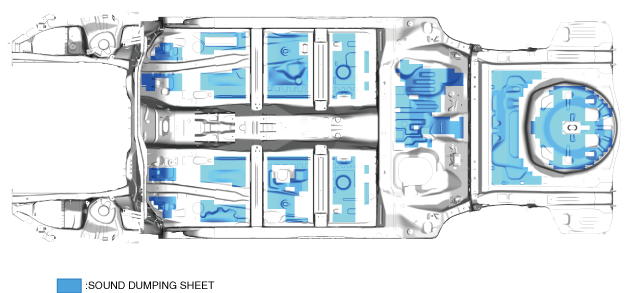

European (L.H.D.) (SKYACTIV-G1.5, SKYACTIV-D1.5, SKYACTIV-D2.0), General (L.H.D.) specs.

am3zzb00000273

European (R.H.D.) (SKYACTIV-G1.5, SKYACTIV-D1.5, SKYACTIV-D2.0), Australian, General (R.H.D.) specs.

am3zzb00000266

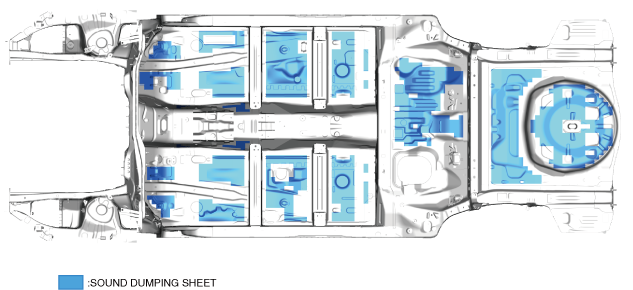

European (L.H.D., RHD.) (SKYACTIV-D2.2) specs.

am3zzb00000265

5HB

European (L.H.D.) (SKYACTIV-G1.5, SKYACTIV-D1.5, SKYACTIV-D2.0), General (L.H.D.) specs.

am3zzb00000274

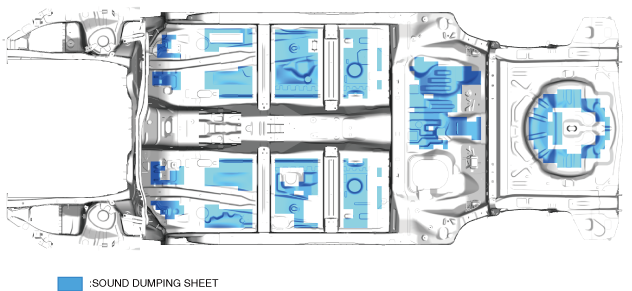

European (R.H.D.) (SKYACTIV-G1.5, SKYACTIV-D1.5, SKYACTIV-D2.0), Australian (SKYACTIV-G2.0, SKYACTIV-G2.5), General (R.H.D.) specs.

am3zzb00000275

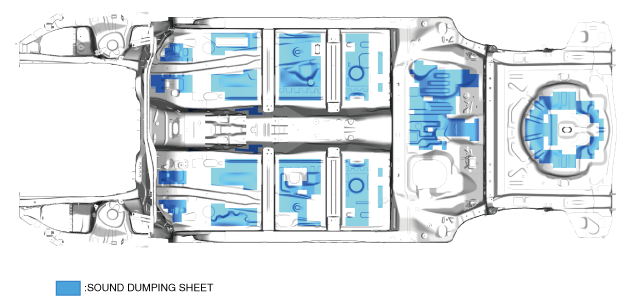

European (L.H.D., RHD.) (SKYACTIV-D2.2), Australian (SKYACTIV-D2.2) specs.

am3zzb00000276
