UNDERBODY DIMENSIONS [DIMENSIONS]
id098010990000
4SD
am3uub00000500
|

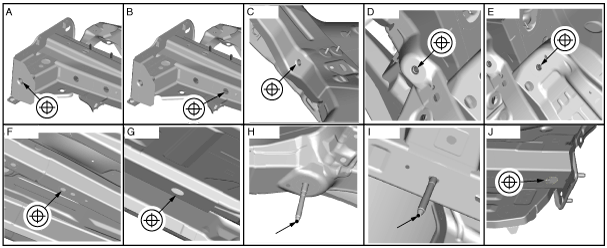

am3uub00000501
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front crossmember installation hole
|
φ24 {0.94}
|
|
B
|
Front side frame datum hole
|
φ16 {0.63}
|
|
C
|
Front crossmember installation hole
|
φ22.5 {0.886}
|
|
D
|
Front crossmember installation nut
|
M14
|
|
E
|
Front crossmember installation nut
|
M14
|
|
F
|
Front B frame datum hole
|
φ16 {0.63}
|
|
G
|
Front B frame datum hole
|
φ25 {0.98}
|
|
H
|
Rear crossmember installation bolt
|
M12
|
|
I
|
Rear crossmember installation bolt
|
M12
|
|
J
|
Rear side frame datum hole
|
φ30 {1.2}
|
5HB

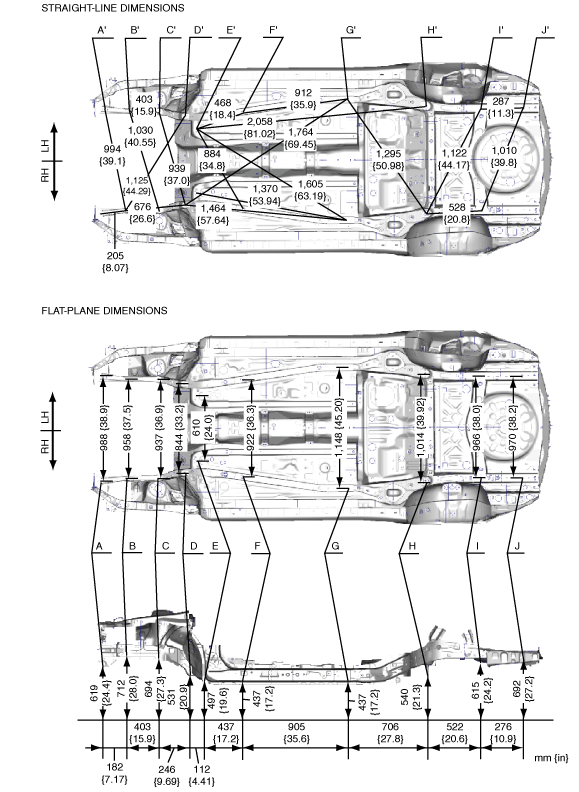

am3zzb00000122
|

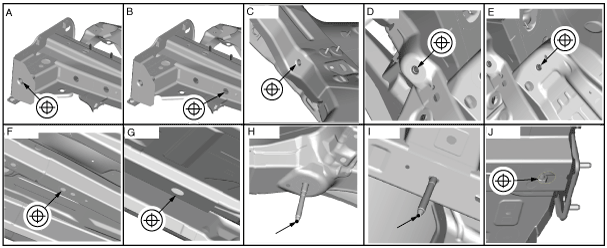

am3zzb00000125
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front crossmember installation hole
|
φ24 {0.94}
|
|
B
|
Front side frame datum hole
|
φ16 {0.63}
|
|
C
|
Front crossmember installation hole
|
φ22.5 {0.886}
|
|
D
|
Front crossmember installation nut
|
M14
|
|
E
|
Front crossmember installation nut
|
M14
|
|
F
|
Front B frame datum hole
|
φ16 {0.63}
|
|
G
|
Front B frame datum hole
|
φ25 {0.98}
|
|
H
|
Rear crossmember installation bolt
|
M12
|
|
I
|
Rear crossmember installation bolt
|
M12
|
|
J
|
Rear side frame datum hole
|
φ30 {1.2}
|
