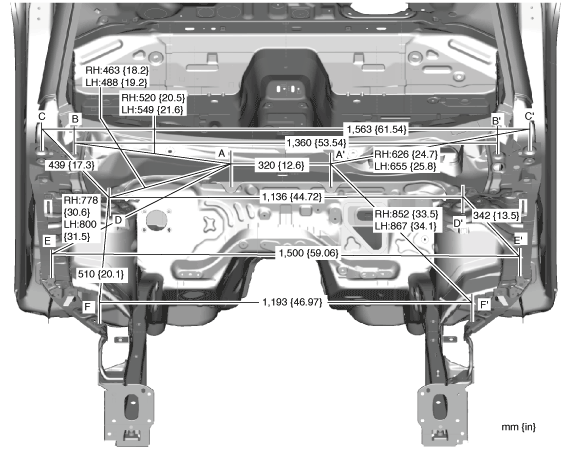

FRONT BODY DIMENSIONS (1) [DIMENSIONS]
id098010990100
am3uub00000527
|
am3zzb00000145
|
|

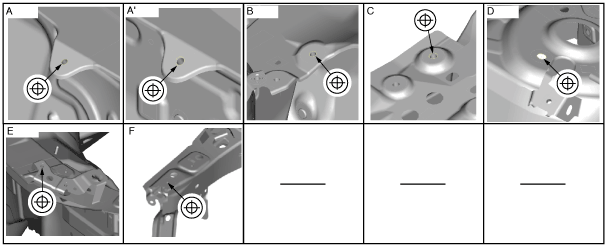

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Cowl panel installation nut
|
M8
|
|
B
|
Cowl panel installation nut
|
M8
|
|
C
|
Bonnet hinge installation nut
|
M8
|
|
D
|
Suspension housing (upper) datum hole
|
RH:Φ10.2 {0.402}
LH:Φ11.5 {0.453}
|
|
E
|
Front fender panel installation nut
|
M6
|
|
F
|
Shroud upper member installation nut
|
M6
|
