CABIN SIDE FRAME DIMENSIONS [DIMENSIONS]
id098010990400
4SD
am3uub00000396
|
am3zzb00000142
|
|

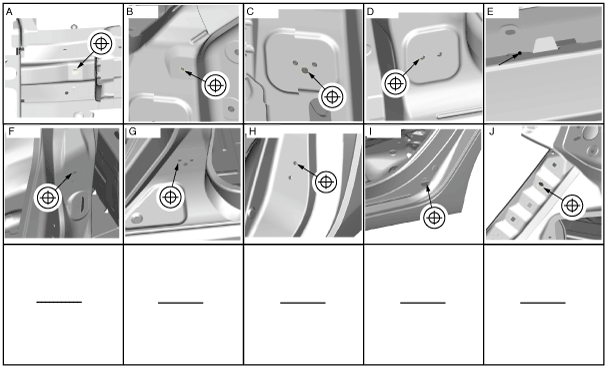

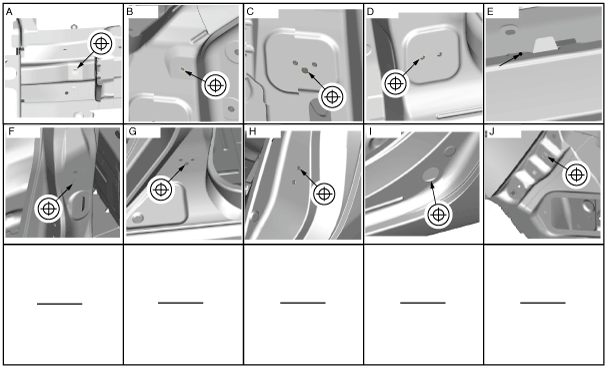

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front side frame (outer) datum hole
|
φ12 {0.47}
|
|
B
|
Front fender installation nut
|
M6
|
|
C
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
D
|
Front door hinge installation nut
|
M8
|
|
E
|
Cabin side frame (outer) notch
|
—
|
|
F
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
G
|
Rear door hinge installation nut
|
M8
|
|
H
|
Rear door striker installation nut
|
M8
|
|
I
|
Hole cover installation hole
|
φ37 {1.5}
|
|
J
|
Rear bumper slider installation hole
|
φ16 {0.63}
|
5HB
am3uub00000398
|
am3zzb00000143
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front side frame (outer) datum hole
|
φ12 {0.47}
|
|
B
|
Front fender panel installation nut
|
M6
|
|
C
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
D
|
Front door hinge installation nut
|
M8
|
|
E
|
Cabin side frame (outer) notch
|
—
|
|
F
|
Rear door hinge installation nut
|
M8
|
|
G
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
H
|
Rear door striker installation nut
|
M8
|
|
I
|
Hole cover installation hole
|
φ37 {1.5}
|
|
J
|
Rear bumper slider installation hole
|
φ16 {0.63}
|
