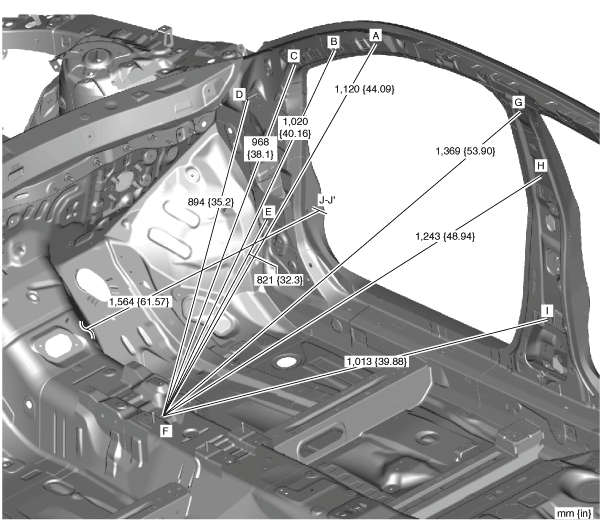

ROOM DIMENSIONS (1) [DIMENSIONS]
id098010990500
4SD
am3uub00000486
|
am3zzb00000147
|
|

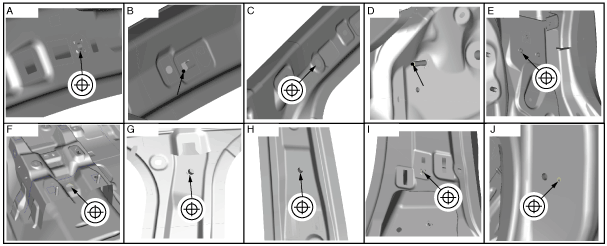

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Curtain air bag module installation nut
|
M6
|
|
B
|
A pillar trim installation square hole
|
20 X 8
{0.79 X 0.3}
|
|
C
|
A pillar trim installation hole
|
φ12 {0.47}
|
|
D
|
Dashboard installation stud pin
|
—
|
|
E
|
Side sill (inner) datum nut
|
M8
|
|
F
|
Tunnel reinforcement datum hole
|
φ20 {0.79}
|
|
G
|
Front seat belt upper anchor installation nut
|
M10
|
|
H
|
Front seat belt upper anchor installation nut
|
M10
|
|
I
|
Pre-tensioner seat belt installation nut
|
M10
|
|
J
|
Front door checker installation hole
|
φ4 {0.2}
|
5HB
am3uub00000487
|
am3zzb00000147
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Curtain air bag module installation nut
|
M6
|
|
B
|
A pillar trim installation square hole
|
20 X 8
{0.79 X 0.3}
|
|
C
|
A pillar trim installation hole
|
φ12 {0.47}
|
|
D
|
Dashboard installation stud pin
|
—
|
|
E
|
Side sill (inner) datum nut
|
M8
|
|
F
|
Tunnel reinforcement datum hole
|
φ20 {0.79}
|
|
G
|
Front seat belt upper anchor installation nut
|
M10
|
|
H
|
Front seat belt upper anchor installation nut
|
M10
|
|
I
|
Pre-tensioner seat belt installation nut
|
M10
|
|
J
|
Front door checker installation hole
|
φ4 {0.2}
|
