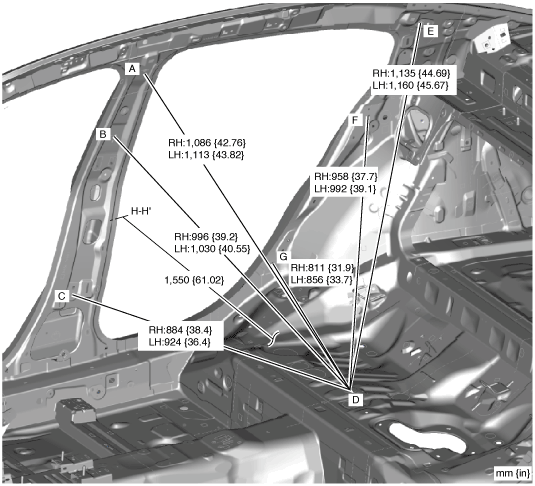

am3uub00000489
ROOM DIMENSIONS (2) [DIMENSIONS]
id098010990600
4SD
am3uub00000489
|

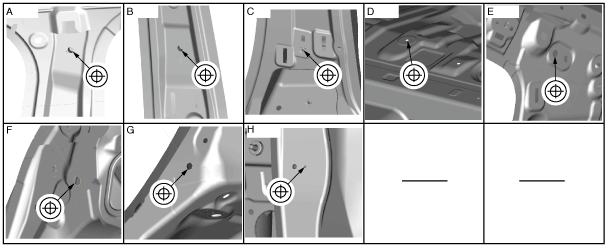

am3zzb00000148
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front seat belt upper anchor installation nut
|
M10
|
|
B
|
Front seat belt upper anchor installation nut
|
M10
|
|
C
|
Pre-tensioner seat belt installation nut
|
M6
|
|
D
|
Center floor panel datum hole
|
φ6 {0.2}
|
|
E
|
C-pillar trim installation hole
|
φ12 {0.47}
|
|
F
|
Rear pillar (inner) datum hole
|
φ8.6 {0.34}
|
|
G
|
Rear pillar (inner) datum hole
|
φ8.6 {0.34}
|
|
H
|
Rear door checker installation hole
|
φ4 {0.2}
|
5HB

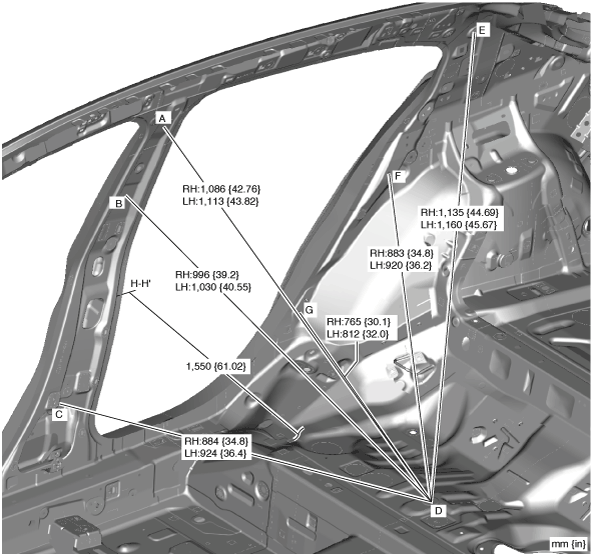

am3zzb00000123
|

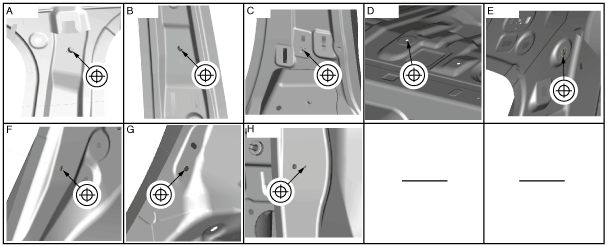

am3zzb00000149
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front seat belt upper anchor installation nut
|
M10
|
|
B
|
Front seat belt upper anchor installation nut
|
M10
|
|
C
|
Pre-tensioner seat belt installation nut
|
M6
|
|
D
|
Center floor panel datum hole
|
φ6 {0.2}
|
|
E
|
C-pillar trim installation hole
|
φ12 {0.47}
|
|
F
|
Rear pillar (inner) datum hole
|
φ8.6 {0.34}
|
|
G
|
Rear pillar (inner) datum hole
|
φ8.6 {0.34}
|
|
H
|
Rear door checker installation hole
|
φ4 {0.2}
|
