ROOM DIMENSIONS (3) [DIMENSIONS]
id098010990700
4SD

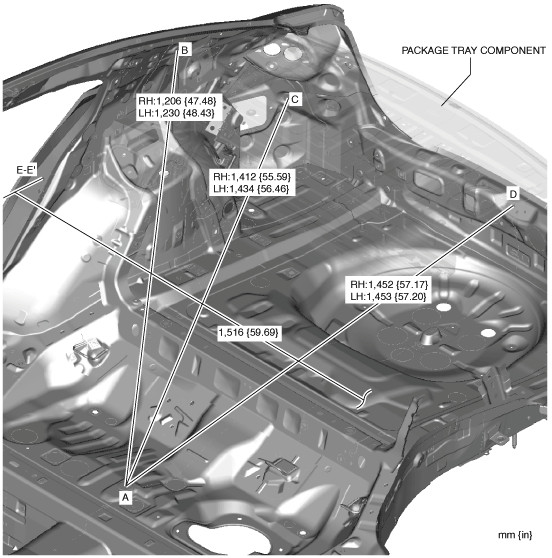

am3uub00000493
|

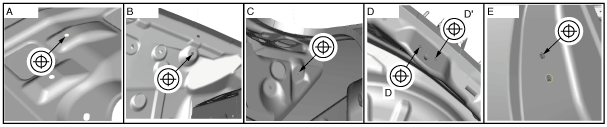

am3zzb00000150
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Center floor panel datum hole
|
φ6 {0.2}
|
|
B
|
Rear pillar (inner) datum hole
|
φ8.6 {0.34}
|
|
C
|
Rear pillar (inner) datum hole
|
φ6 {0.2}
|
|
D
|
Trunk lid striker installation nut
|
M6
|
|
E
|
Rear door striker installation nut
|
M10
|
5HB

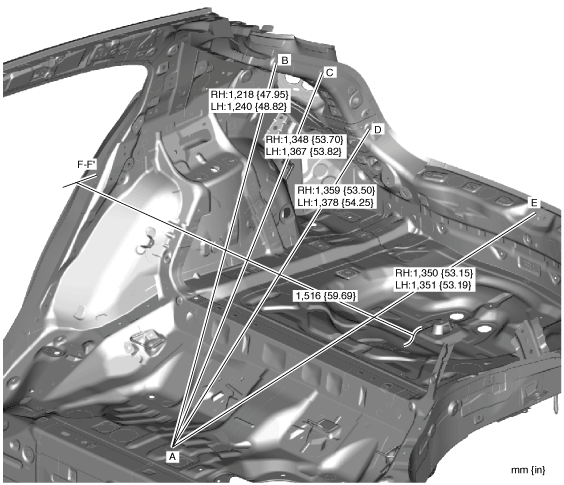

am3zzb00000124
|

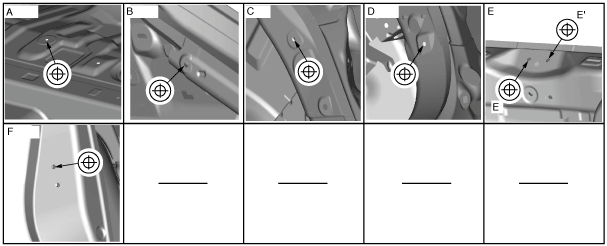

am3zzb00000126
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Center floor panel datum hole
|
φ6 {0.2}
|
|
B
|
Trunk side upper trim installation hole
|
φ8.6 {0.34}
|
|
C
|
Trunk side upper trim installation hole
|
φ6 {0.2}
|
|
D
|
Trunk side upper trim installation hole
|
φ6 {0.2}
|
|
E
|
Liftgate striker installation nut
|
M6
|
|
F
|
Rear door striker installation nut
|
M10
|
