REAR BODY STRAIGHT-LINE DIMENSIONS [DIMENSIONS]
id098010990800
4SD
am3uub00000528
|
am3zzb00000151
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Roof panel projection location
|
—
|
|
B
|
Cabin side frame (outer) (rear fender panel) projection location
|
—
|
|
C
|
Corner plate datum hole
|
φ10 {0.39}
|
|
D
|
Rear bumper grommet installation square hole
|
8 x 8
{0.3 x 0.3}
|
|
E
|
Rear bumper reinforcement installation bolt
|
M10
|
|
F
|
Rear bumper reinforcement installation bolt
|
M10
|
|
G
|
Trunk lid striker installation nut
|
M6
|
|
H
|
Brace bracket datum hole
|
φ10 {0.39}
|

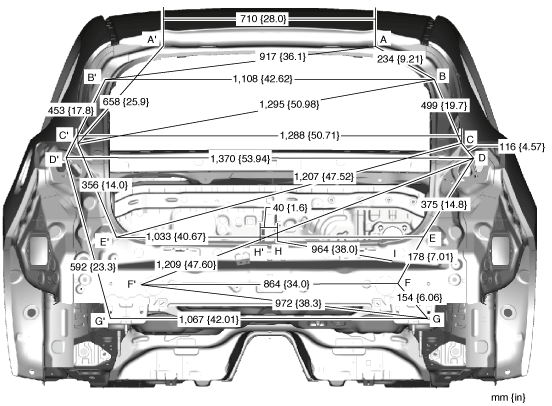

5HB
am3uub00000530
|
am3zzb00000152
|
|

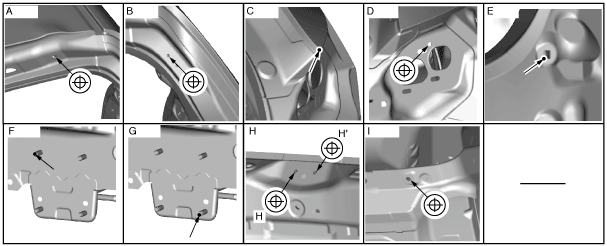

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Liftgate hinge installation hole
|
φ14 {0.55}
|
|
B
|
Liftgate stay damper installation nut
|
M6
|
|
C
|
Cabin side frame (outer) (rear fender panel) projection location
|
—
|
|
D
|
Corner plate datum hole
|
φ10 {0.39}
|
|
E
|
Rear bumper grommet installation square hole
|
8 x 8
{0.3 x 0.3}
|
|
F
|
Rear bumper reinforcement installation bolt
|
M10
|
|
G
|
Rear bumper reinforcement installation bolt
|
M10
|
|
H
|
Liftgate striker installation nut
|
M8
|
|
I
|
Brace bracket datum hole
|
φ10 {0.39}
|
