CONSTRUCTION STANDARD VALUES [CONSTRUCTION STANDARD VALUES]

id0980c0740300

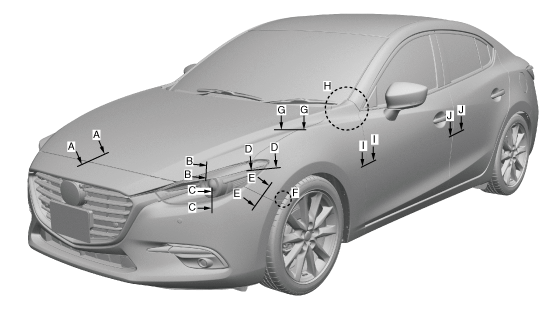

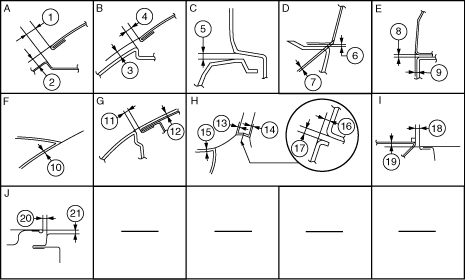

Front View

am3uub00000589

aaxjjb00000765

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})

A

1

3.5 {0.14}

5.3 {0.21}

1.7 {0.067}

2.0 {0.079}

2

0

2.0 {0.079}

-2.0 {-0.079}

-

B

3

4.5 {0.18}

6.5 {0.26}

2.6 {0.10}

2.5 {0.098}

4

-1.8 {-0.071}

0.1 {0.004}

-3.7 {-0.15}

-

C

5

1.8 {0.071}

3.3 {0.13}

0.3 {0.01}

1.7 {0.067}

D

6

3.0 {0.12}

4.5 {0.18}

1.5 {0.06}

-

7

1.8 {0.071}

3.3 {0.013}

0.3 {0.012}

-

E

8

0.5 {0.02}

1.3 {0.05}

0.5 {0.02}

-

9

0.5 {0.02}

1.2 {0.047}

-0.2 {-0.008}

-

F

10

0

1.0 {0.039}

-1.0 {-0.039}

-

G

11

3.5 {0.14}

4.5 {0.18}

2.5 {0.098}

1.0 {0.039}

12

-0.4 {-0.02}

0.6 {0.02}

-1.4 {-0.06}

-

H

13

0

1.6 {0.063}

-1.6 {-0.063}

-

14

0

1.0 {0.039}

-1.0 {-0.039}

-

15

0

1.5 {0.059}

-1.5 {-0.059}

-

16

0

1.5 {0.059}

-1.5 {-0.059}

-

17

2.0 {0.079}

3.6 {0.14}

0.4 {0.02}

-

I

18

3.3 {0.13}

4.3 {0.17}

2.5 {0.098}

1.0 {0.039}

19

0

1.0 {0.039}

-1.0 {-0.039}

-

J

20

3.2 {0.13}

4.3 {0.17}

2.2 {0.098}

1.0 {0.039}

21

0

1.0 {0.039}

-1.0 {-0.039}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Parallelism (mm {in})
A	1	3.5 {0.14}	5.3 {0.21}	1.7 {0.067}	2.0 {0.079}
2	0	2.0 {0.079}	-2.0 {-0.079}	-
B	3	4.5 {0.18}	6.5 {0.26}	2.6 {0.10}	2.5 {0.098}
4	-1.8 {-0.071}	0.1 {0.004}	-3.7 {-0.15}	-
C	5	1.8 {0.071}	3.3 {0.13}	0.3 {0.01}	1.7 {0.067}
D	6	3.0 {0.12}	4.5 {0.18}	1.5 {0.06}	-
7	1.8 {0.071}	3.3 {0.013}	0.3 {0.012}	-
E	8	0.5 {0.02}	1.3 {0.05}	0.5 {0.02}	-
9	0.5 {0.02}	1.2 {0.047}	-0.2 {-0.008}	-
F	10	0	1.0 {0.039}	-1.0 {-0.039}	-
G	11	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
12	-0.4 {-0.02}	0.6 {0.02}	-1.4 {-0.06}	-
H	13	0	1.6 {0.063}	-1.6 {-0.063}	-
14	0	1.0 {0.039}	-1.0 {-0.039}	-
15	0	1.5 {0.059}	-1.5 {-0.059}	-
16	0	1.5 {0.059}	-1.5 {-0.059}	-
17	2.0 {0.079}	3.6 {0.14}	0.4 {0.02}	-
I	18	3.3 {0.13}	4.3 {0.17}	2.5 {0.098}	1.0 {0.039}
19	0	1.0 {0.039}	-1.0 {-0.039}	-
J	20	3.2 {0.13}	4.3 {0.17}	2.2 {0.098}	1.0 {0.039}
21	0	1.0 {0.039}	-1.0 {-0.039}	-

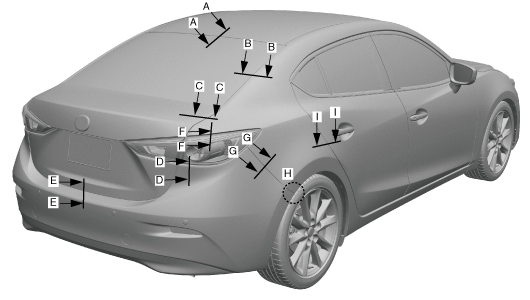

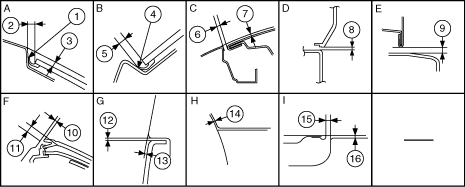

Rear View

4SD

aaxjjb00000766

aaxjjb00000767

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})

A

1

0

0.5 {0.02}

0

-

2

3.9 {0.15}

5.6 {0.22}

2.2 {0.09}

-

3

2.0 {0.079}

3.8 {0.15}

0.2 {0.008}

-

B

4

0

0.5 {0.02}

0

-

5

3.5 {0.14}

5.7 {0.22}

1.3 {0.05}

-

C

6

3.3 {0.13}

4.3 {0.17}

2.3 {0.09}

1.0 {0.039}

7

-0.3 {-0.01}

0.7 {0.03}

-1.3 {-0.051}

-

D

8

1.8 {0.071}

3.3 {0.13}

0.3 {0.01}

-

E

9

6.1 {0.24}

8.1 {0.32}

4.1 {0.16}

2.0 {0.079}

F

10

1.8 {0.071}

3.0 {0.12}

0.6 {0.02}

1.2 {0.047}

11

2.3 {0.091}

3.8 {0.15}

0.8 {0.03}

-

G

12

0.5 {0.02}

1.3 {0.05}

0.5 {0.02}

-

13

0.5 {0.02}

1.2 {0.047}

-0.2 {-0.008}

-

H

14

0

1.0 {0.039}

-1.0 {-0.039}

-

I

15

3.2 {0.126}

4.3 {0.169}

2.2 {0.087}

1.0 {0.039}

16

0

1.0 {0.039}

-1.0 {-0.039}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Parallelism (mm {in})
A	1	0	0.5 {0.02}	0	-
2	3.9 {0.15}	5.6 {0.22}	2.2 {0.09}	-
3	2.0 {0.079}	3.8 {0.15}	0.2 {0.008}	-
B	4	0	0.5 {0.02}	0	-
5	3.5 {0.14}	5.7 {0.22}	1.3 {0.05}	-
C	6	3.3 {0.13}	4.3 {0.17}	2.3 {0.09}	1.0 {0.039}
7	-0.3 {-0.01}	0.7 {0.03}	-1.3 {-0.051}	-
D	8	1.8 {0.071}	3.3 {0.13}	0.3 {0.01}	-
E	9	6.1 {0.24}	8.1 {0.32}	4.1 {0.16}	2.0 {0.079}
F	10	1.8 {0.071}	3.0 {0.12}	0.6 {0.02}	1.2 {0.047}
11	2.3 {0.091}	3.8 {0.15}	0.8 {0.03}	-
G	12	0.5 {0.02}	1.3 {0.05}	0.5 {0.02}	-
13	0.5 {0.02}	1.2 {0.047}	-0.2 {-0.008}	-
H	14	0	1.0 {0.039}	-1.0 {-0.039}	-
I	15	3.2 {0.126}	4.3 {0.169}	2.2 {0.087}	1.0 {0.039}
16	0	1.0 {0.039}	-1.0 {-0.039}	-

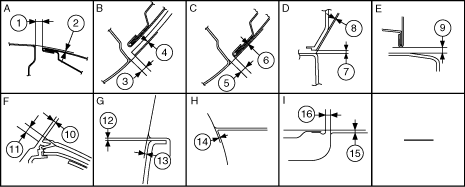

5HB

aaxjjb00000768

aaxjjb00000769

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})

A

1

6.1 {0.24}

7.1 {0.28}

5.1 {0.20}

1.2 {0.047}

2

-1.0 {-0.039}

0

-2.0 {-0.079}

-

B

3

4.6 {0.18}

7.1 {0.28}

2.1 {0.08}

-

4

-4.0 {-0.16}

-1.8 {-0.071}

-6.2 {-0.24}

2.6{0.10}

C

5

3.8 {0.15}

5.0 {0.20}

2.6 {0.10}

-

6

-0.7 {-0.03}

0.5 {0.02}

-1.9 {-0.075}

-

D

7

5.2 {0.20}

7.2 {0.28}

3.2 {0.13}

2.0 {0.079}

8

0

1.8 {0.071}

-1.8 {0.071}

-

E

9

6.3 {0.25}

8.3 {0.33}

4.3 {0.17}

2.0 {0.079}

F

10

1.8 {0.071}

3.0 {0.12}

0.6 {0.02}

1.2 {0.047}

11

2.3 {0.091}

3.8 {0.15}

0.8 {0.03}

-

G

12

0.5 {0.02}

1.3 {0.071}

0.5 {0.02}

-

13

0.5 {0.02}

1.2 {0.047}

-0.2 {-0.008}

-

H

14

0

1.0 {0.039}

-1.0 {-0.039}

-

I

15

3.2 {0.126}

4.3 {0.169}

2.2 {0.087}

1.0 {0.039}

16

0

1.0 {0.039}

-1.0 {-0.039}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Parallelism (mm {in})
A	1	6.1 {0.24}	7.1 {0.28}	5.1 {0.20}	1.2 {0.047}
A	2	-1.0 {-0.039}	0	-2.0 {-0.079}	-
B	3	4.6 {0.18}	7.1 {0.28}	2.1 {0.08}	-
B	4	-4.0 {-0.16}	-1.8 {-0.071}	-6.2 {-0.24}	2.6{0.10}
C	5	3.8 {0.15}	5.0 {0.20}	2.6 {0.10}	-
C	6	-0.7 {-0.03}	0.5 {0.02}	-1.9 {-0.075}	-
D	7	5.2 {0.20}	7.2 {0.28}	3.2 {0.13}	2.0 {0.079}
D	8	0	1.8 {0.071}	-1.8 {0.071}	-
E	9	6.3 {0.25}	8.3 {0.33}	4.3 {0.17}	2.0 {0.079}
F	10	1.8 {0.071}	3.0 {0.12}	0.6 {0.02}	1.2 {0.047}
F	11	2.3 {0.091}	3.8 {0.15}	0.8 {0.03}	-
G	12	0.5 {0.02}	1.3 {0.071}	0.5 {0.02}	-
G	13	0.5 {0.02}	1.2 {0.047}	-0.2 {-0.008}	-
H	14	0	1.0 {0.039}	-1.0 {-0.039}	-
I	15	3.2 {0.126}	4.3 {0.169}	2.2 {0.087}	1.0 {0.039}
I	16	0	1.0 {0.039}	-1.0 {-0.039}	-
