CHARGING SYSTEM LOCATION INDEX [SKYACTIV-D 2.2 (WITH i-ELOOP)]

id131704000003

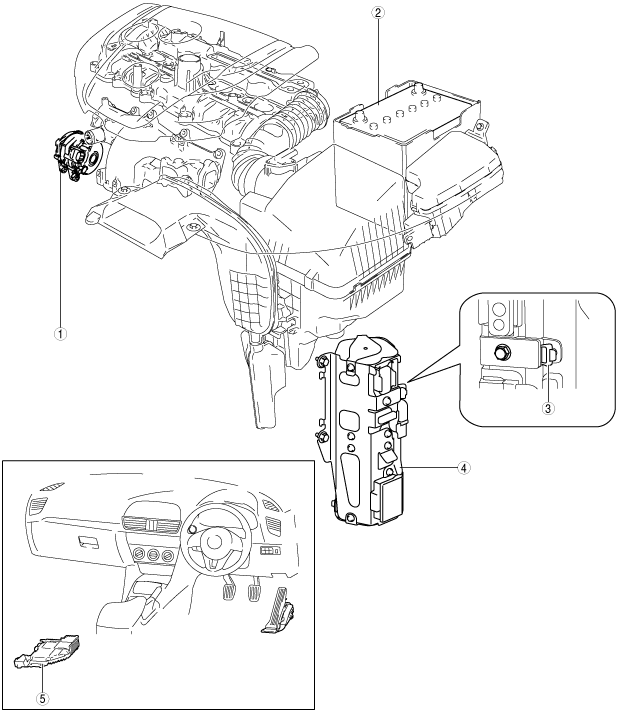

am3zzw00016475

1	Generator (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2 (WITH i-ELOOP)].) (See GENERATOR INSPECTION [SKYACTIV-D 2.2 (WITH i-ELOOP)].) (See GENERATOR DISASSEMBLY/ASSEMBLY [SKYACTIV-D 2.2 (WITH i-ELOOP)].)
2	Battery (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See BATTERY INSPECTION [SKYACTIV-D 2.2].) (See BATTERY RECHARGING [SKYACTIV-D 2.2].) (See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING) [SKYACTIV-D 2.2].)
3	Service plug (See SERVICE PLUG DISCONNECTION/CONNECTION [i-ELOOP].)
4	Capacitor (i-ELOOP) (See CAPACITOR (i-ELOOP) REMOVAL/INSTALLATION [i-ELOOP].) (See CAPACITOR (i-ELOOP) INSPECTION [i-ELOOP].) (See CAPACITOR (i-ELOOP) COMPULSORY DISCHARGE [i-ELOOP].)
5	DC-DC converter (i-ELOOP) (See DC-DC CONVERTER (i-ELOOP) REMOVAL/INSTALLATION [i-ELOOP].) (See DC-DC CONVERTER (i-ELOOP) INSPECTION [i-ELOOP].)
