MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM

id151000002000


Outline

•  The Mazda radar cruise control (MRCC) system uses a radar unit to detect a vehicle ahead, and performs headway control to maintain a constant distance from a vehicle ahead without the driver having to depress the accelerator or brake pedal. Additionally, if the detecting vehicle approaches the vehicle ahead too closely such as when the vehicle ahead is braking suddenly, the system alerts the driver using a warning sound and warning indication.
Warning
•  Do not rely completely on the MRCC system and always drive carefully. There are limitations to the distance between the vehicles which can be controlled by the MRCC system, and if the accelerator pedal or brake pedal is mistakenly operated it could result in an accident. Always keep a safe distance from the vehicle ahead by depressing the brake pedal if necessary while verifying the safety of the surrounding area.
•  The MRCC system does not completely stop the vehicle using the automatic braking operation. Additionally, brake control is performed, however, there are limitations to the deceleration, and the system may be unable to decelerate sufficiently to avoid hitting the vehicle ahead if the vehicle ahead applies the brakes suddenly or another vehicle cuts into the driving lane, which could result in an accident. Always keep a safe distance from the vehicle ahead by depressing the brake pedal if necessary while verifying the safety of the surrounding area.

Functions

•  The MRCC system is equipped with the following indicated modes.
―  Constant speed control mode: Drives the vehicle at the set vehicle speed set by the driver based on the cruise control switch operation signal.
―  Headway control mode: When a vehicle ahead is detected while the vehicle is traveling in constant speed control mode, headway control with the vehicle ahead is performed while maintaining the set vehicle speed set by the driver and a constant distance between the vehicles.

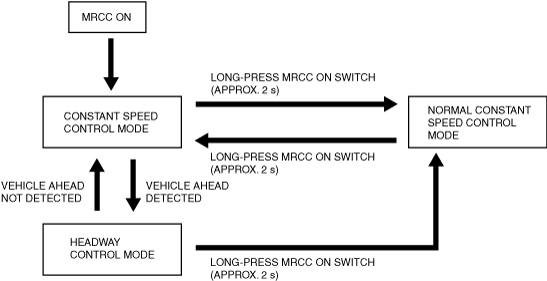

Mode switching function
•  The modes in the Mazda Radar Cruise Control (MRCC) system can be switched as follows.
Note
•  When switching from constant speed control mode/headway control mode to continuous constant speed control mode, the set vehicle speed must be reset. In addition, when switching from continuous constant speed control mode to constant speed control mode/headway control mode, the vehicle speed becomes the speed set before switching to continuous constant speed control mode.
am3zzn00006670

Distance between vehicles setting function

•  Using the DISTANCE switch on the cruise control switch, the distance between vehicles can be controlled at 4 levels, including long→medium→short→extremely short. (Initial setting is set to LONG)
am3zzn00006325
Caution
•  The distances between vehicles indicated below are average values during travel on flat roads and differ depending on the driving and road conditions.

Distance between vehicles table (reference)

Set distance between vehicles

Detecting vehicle speed

30 km/h {19 mph}

40 km/h {25 mph}

50 km/h {31 mph}

60 km/h {37 mph}

70 km/h {43 mph}

80 km/h {50 mph}

90 km/h {56 mph}

100 km/h {62 mph}

110 km/h {68 mph}
Long
23 m
{75 ft}
29 m
{95 ft}
36 m
{118 ft}
42 m
{138 ft}
48 m
{157 ft}
55 m
{180 ft}
61 m
{200 ft}
67 m
{220 ft}
74 m
{243 ft}
Medium
19 m
{62 ft}
24 m
{79 ft}
29 m
{95 ft}
34 m
{112 ft}
39 m
{128 ft}
44 m
{144 ft}
49 m
{161 ft}
53 m
{174 ft}
58 m
{190 ft}
Short
16 m
{52 ft}
19 m
{62 ft}
22 m
{72 ft}
25 m
{82 ft}
29 m
{95 ft}
32 m
{105 ft}
36 m
{118 ft}
40 m
{131 ft}
43 m
{141 ft}
Extremely short
13 m
{42 ft}
15 m
{49 ft}
17 m
{55 ft}
21 m
{68 ft}
22 m
{72 ft}
25 m
{82 ft}
27 m
{89 ft}
30 m
{98 ft}
32 m
{105 ft}

Set distance between vehicles

Detecting vehicle speed

120 km/h {75 mph}

130 km/h {81 mph}

140 km/h {87 mph}

150 km/h {87 mph}

160 km/h {87 mph}

170 km/h {87 mph}

180 km/h {87 mph}

190 km/h {87 mph}

200 km/h {87 mph}
Long
80 m
{262 ft}
86 m
{282 ft}
93 m
{305 ft}
99 m
{324 ft}
105 m
{344 ft}
105 m
{344 ft}
105 m
{344 ft}
105 m
{344 ft}
105 m
{344 ft}
Medium
63 m
{207 ft}
68 m
{223 ft}
73 m
{240 ft}
78 m
{255 ft}
83 m
{272 ft}
88 m
{288 ft}
90 m
{295 ft}
90 m
{295 ft}
90 m
{295 ft}
Short
47 m
{154 ft}
50 m
{164 ft}
54 m
{177 ft}
57 m
{187 ft}
61 m
{200 ft}
64 m
{210 ft}
68 m
{223 ft}
72 m
{236 ft}
75 m
{246 ft}
Extremely short
35 m
{115 ft}
38 m
{125 ft}
40 m
{131 ft}
43 m
{141 ft}
45 m
{147 ft}
48 m
{157 ft}
51 m
{167 ft}
53 m
{173 ft}
56 m
{183 ft}


System conditions display function

•  The radar unit displays the system status using the MRCC indicator light (green)/warning light (amber), active driving display, and center display.

Condition

MRCC indicator light (green)

MRCC warning light (amber)

Active driving display indication

Center display
MRCC system is OFF
Off
Off
No display
No display
MRCC system is ON
MRCC system is on standby
Off
Off
No display
Vehicle speed is set
On
Off
No display
Vehicle ahead is detected
On
Off
No display
MRCC system is ON
Distance between vehicles is set
Long
On
Off
No display
Medium
On
Off
No display
Short
On
Off
No display
Extremely short
On
Off
No display
When switching from constant speed control mode/headway control mode to continuous constant speed control mode
Off
Off
No display
No display
Accelerator pedal is depressed
On
Off
No display
Deceleration exceeding system limits required
On
Off
No display
Shift up/down required (MTX)
On
Off
No display
MRCC system is automatically canceled due to low vehicle speed
Off
Off
No display
MRCC system is ON
Dirty radar unit is detected
Off
Off
No display
Warning display*1
Malfunction occurred in MRCC system
Off
On
No display
Warning display*1

*1  :For the warning display content on the center display, refer to the [CENTER DISPLAY]. (See CENTER DISPLAY [WITH CENTER DISPLAY].)

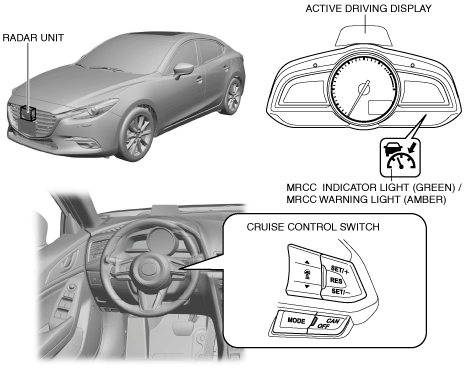

Structural view

am3zzn00005782

System wiring diagram

am3zzn00005802

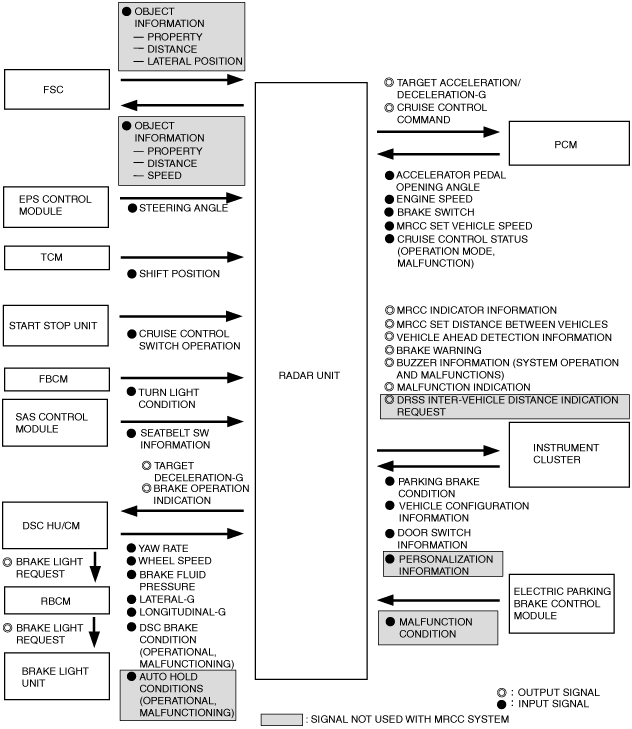

Block diagram

Block diagram (MRCC/SBS/DRSS)

am3zzn00005784

Operation

•  When all of the following conditions are met, the MRCC system goes on operation standby.
Operation condition
―  Selector lever is in D or M position (ATX)
―  Shift lever is in a position other than reverse or neutral (MTX)
―  Vehicle speed is within range of approx. 30—145 km/h {19.0—90.0 mph}(Australian, General (L.H.D.)
―  Vehicle speed is within range of approx. 30—200 km/h {19.0—124 mph} (European (L.H.D. U.K.) specs.)
―  MRCC system is ON
―  DSC is on
―  Brake pedal is not depressed
―  Clutch pedal is not depressed (MTX)
―  DSC is not operating
―  TCS is not operating
―  Smart city brake support (SCBS) is not operating
―  Smart brake support (SBS) is not operating
―  Electric parking brake is released
―  All doors are closed
―  Driver seat belt is fastened
―  No malfunction in DSC system (No DTCs stored in memory)
―  No malfunction in MRCC system (No DTCs stored in memory)

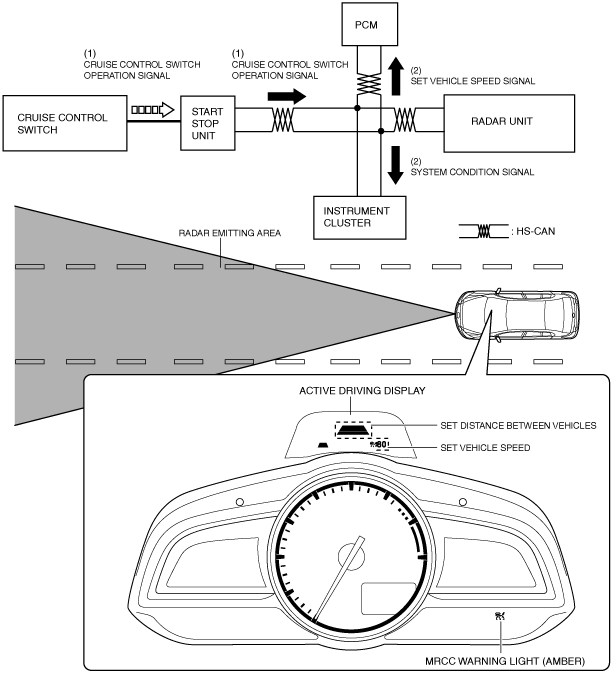

Constant speed control mode

1.  The radar unit recognizes the set vehicle speed set by the driver based on the cruise control switch operation signal sent from the start stop unit when the operation conditions are met.
2.  The radar unit sends the set vehicle speed signal to the PCM based on the recognized set vehicle speed and sends a system status display request signal to the instrument cluster.
3.  The PCM performs engine control to maintain the set vehicle speed based on the signal from the radar unit.
4.  The instrument cluster displays the MRCC system operation screen based on the signal from the radar unit.
Note
•  If the vehicle speed decreases to 20 km/h {12 mph} or less while in constant speed control mode, the radar unit cancels constant speed control mode and switches to standby status.
•  When the radar unit detects the target information while in constant speed control mode, it switches the mode to headway control mode.
am3zzn00006103

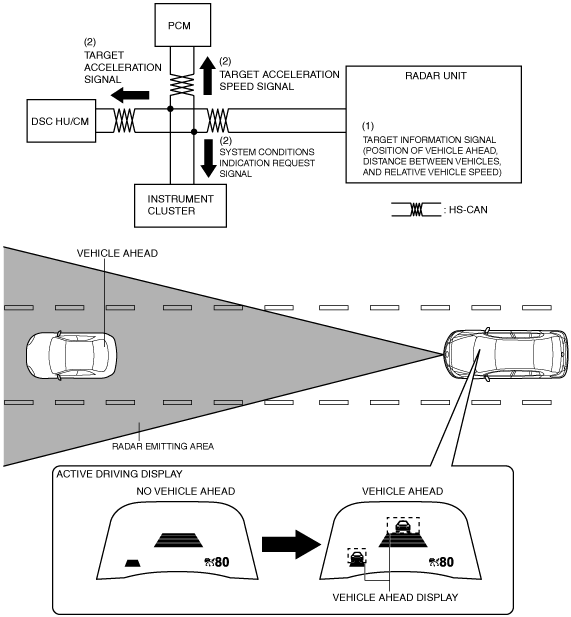

Headway control mode

1.  When the radar unit detects the target information while the vehicle is traveling in constant speed control mode, it switches the mode to headway control mode.
2.  The radar unit calculates the target acceleration speed based on the following, and sends the target acceleration speed signal to the PCM and DSC HU/CM. Additionally, it sends the system status display request signal to the instrument cluster.
―  Distance between vehicles set by driver
―  Target information (position of vehicle ahead, distance between vehicles, relative vehicle speed)
―  Detecting vehicle speed
3.  The PCM performs engine control to maintain distance between vehicles based on the signal from the radar unit.
4.  The DSC HU/CM controls braking to maintain distance between vehicles based on the signal from the radar unit.
5.  The instrument cluster displays the vehicle ahead screen based on the signal from the radar unit.
Note
•  In the following cases, the system transitions from headway control mode to constant speed mode.
―  Vehicle ahead accelerates over set vehicle speed of detecting vehicle
―  Vehicle ahead or detecting vehicle switches driving lanes, and vehicle ahead of detecting vehicle no longer exists
am3zzn00005786


Inter-vehicle distance limit warning

•  If any of the following conditions is met, the warning alarm in the instrument cluster is activated and the brake warning in the display is indicated to urge the driver to take action such as braking.
am3zzn00005787
―  Radar unit determines that crash is unavoidable even if automatic braking is performed at maximum possible deceleration rate
―  Vehicle ahead performs emergency braking

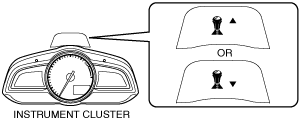

Shift up/shift down request (MTX)

•  If the transaxle gear position is not appropriate to the vehicle speed while the MRCC system is operating, a shift up/shift down request is displayed in the display of the instrument cluster.
am3zzn00005788
Caution
•  If the vehicle continues to be driven without following the shift up request, the continuous high engine speed will apply a load on the engine which could cause engine damage. Shift the gears up in accordance with the shift up request.
•  If the vehicle continues to be driven without following the shift down request, it could cause the engine to stall. Shift the gears down in accordance with the shift down request.
•  If the vehicle continues to be driven without following the shift up/shift down request, the radar unit will automatically cancel the MRCC system to reduce the load on the engine.
am3zzn00005789
Note
•  When driving on a steep downhill, a shift down request may be indicated to decrease the load on the brakes required to maintain a constant vehicle speed.
