LDWS WARNING LIGHT

id151300001300

Purpose

• The LDWS warning light warns the driver that the vehicle may depart from its lane.

Functions

• The instrument cluster flashes the LDWS warning light based on the warning indication request signal sent from the forward sensing camera (FSC) via CAN communication.

• The flash pattern of the LDWS warning light is as shown in the figure.

am3zzn00006358

Construction

• The LDWS warning light is built into the instrument cluster.

am3zzn00006359

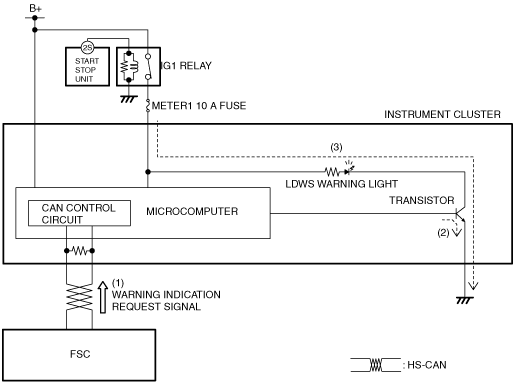

Operation

1. The instrument cluster receives (1) a warning indication request signal or a system malfunction indication request signal from the forward sensing camera (FSC) via CAN communication.

2. The instrument cluster turns the transistor on (2) when it receives the warning indication request signal.

3. When the transistor turns on intermittently, the LDWS warning light flashes (3).

am3zzn00006360

Fail-safe

• Not applicable
