SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) INDICATOR LIGHT, SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) WARNING LIGHT
id151300002300
Purpose/Function
• The Smart Brake Support (SBS)/Smart City Brake Support (SCBS) indicator light (red) and Smart Brake Support (SBS)/Smart City Brake Support (SCBS) warning light (amber), built into the instrument cluster, inform the driver of the following vehicle conditions:
-
― Smart Brake Support (SBS)/Smart City Brake Support (SCBS) indicator light (red)
-
• Smart Brake Support (SBS) is operating (brake control (SBS brake) is operating).
• Advanced Smart City Brake Support (Advanced SCBS)/Smart City Brake Support [Forward] (SCBS F)/Smart City Brake Support [Reverse] (SCBS R) is operating (brake control (SCBS brake) is operating).
― Smart Brake Support (SBS)/Smart City Brake Support (SCBS) warning light (amber)
-
• Smart Brake Support (SBS) system malfunction.
• Advanced Smart City Brake Support (Advanced SCBS)/Smart City Brake Support [Forward] (SCBS F)/Smart City Brake Support [Reverse] (SCBS R) system malfunction.
Construction

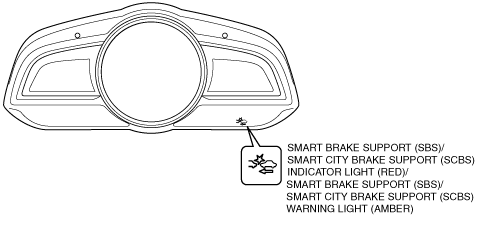

• The Smart Brake Support (SBS)/Smart City Brake Support (SCBS) indicator light (red)/Smart Brake Support (SBS)/Smart City Brake Support (SCBS) warning light (amber) is equipped in the instrument cluster.
Operation
• When the Smart Brake Support (SBS)/Smart City Brake Support (SCBS) is non-operational, operational, and malfunctioning, the Smart Brake Support (SBS)/Smart City Brake Support (SCBS) indicator light (red)/Smart Brake Support (SBS)/Smart City Brake Support (SCBS) warning light (amber) operates according to the following table.
-
Note
-
• For vehicle with active driving display, when the Advanced Smart City Brake Support (Advanced SCBS)/Smart City Brake Support [Forward] (SCBS F)/Smart City Brake Support [Reverse] (SCBS R) system operates, the user is notified by the flashing the Smart Brake Support (SBS)/Smart City Brake Support (SCBS) indicator light (red) and the active driving display.
|
Item
|
Smart Brake Support (SBS)/Smart City Brake Support (SCBS) indicator light (red)
|
Smart Brake Support (SBS)/Smart City Brake Support (SCBS) warning light (amber)
|
|
Not operating/Normal condition
|
Not illuminated/Not flashed
|
Not illuminated/Not flashed
|
|
Operating
|
Flashes
|
Not illuminated/Not flashed
|
|
Malfunction
|
Not illuminated/Not flashed
|
Illuminated
|

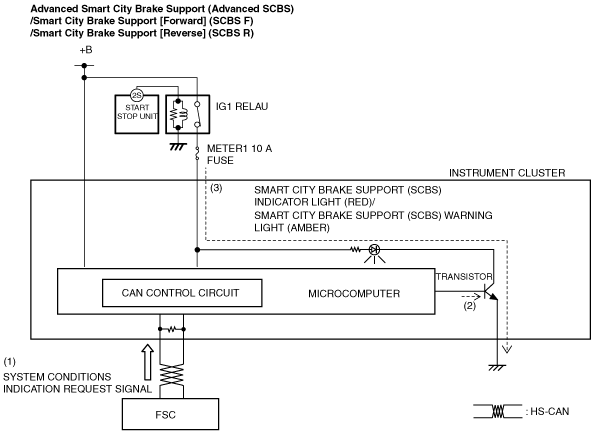

1. The instrument cluster receives (1) the system conditions display request signal from the radar unit and/or the laser sensor via the CAN signal.
2. The instrument cluster turns the transistor on (2) based on the system conditions display request signal.
3. When the transistor turns on, a ground circuit with the Smart Brake Support (SBS)/Smart City Brake Support (SCBS) indicator light (red)/Smart Brake Support (SBS)/Smart City Brake Support (SCBS) warning light (amber) is established, and the Smart Brake Support (SBS)/Smart City Brake Support (SCBS) indicator light (red)/Smart Brake Support (SBS)/Smart City Brake Support (SCBS) warning light (amber) turns on (3).
Fail-safe
• Function not equipped.
