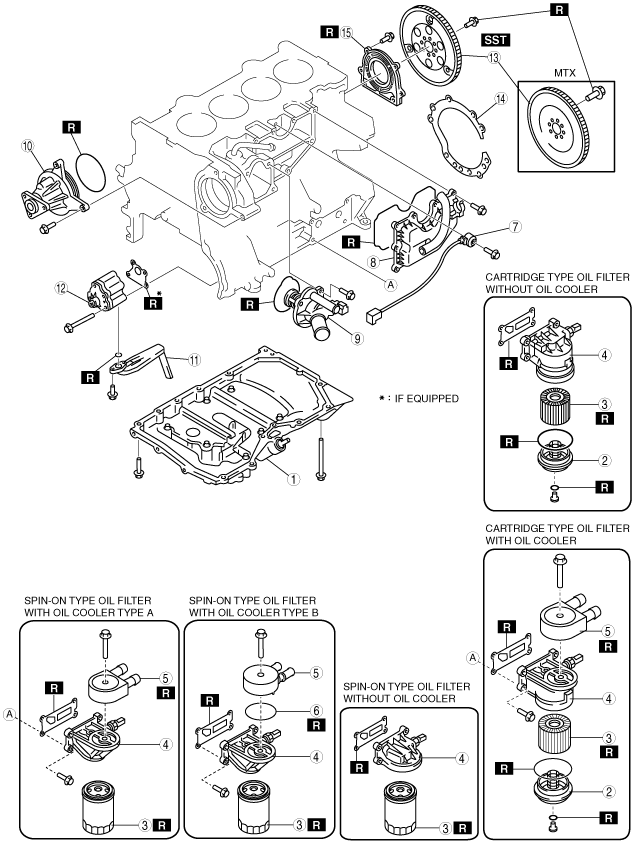

belbze00000043
CYLINDER BLOCK DISASSEMBLY (I)
id011000500600
1. Disassemble in the order indicated in the table.
belbze00000043
|
|
1
|
Oil pan
|
|
2
|
Oil filter cover (cartridge type)
|
|
3
|
Oil filter
|
|
4
|
Oil filter adapter
|
|
5
|
Oil cooler
|
|
6
|
Gasket
|
|
7
|
Knock sensor
|
|
8
|
Oil separator
|
|
9
|
Thermostat
|
|
10
|
Water pump
|
|
11
|
Oil strainer
|
|
12
|
Oil pump
|
|
13
|
Flywheel (MTX), Drive plate (ATX) (See Drive Plate (ATX), Flywheel (MTX) Disassembly Note)
|
|
14
|
End plate (MTX)
|
|
15
|
Rear oil seal
|
Drive Plate (ATX), Flywheel (MTX) Disassembly Note
1. Hold the crankshaft using the SST.
2. Remove the bolts in several passes.
