CYLINDER HEAD DISASSEMBLY (II) [MZR-CD 2.2]

id0110f2500500

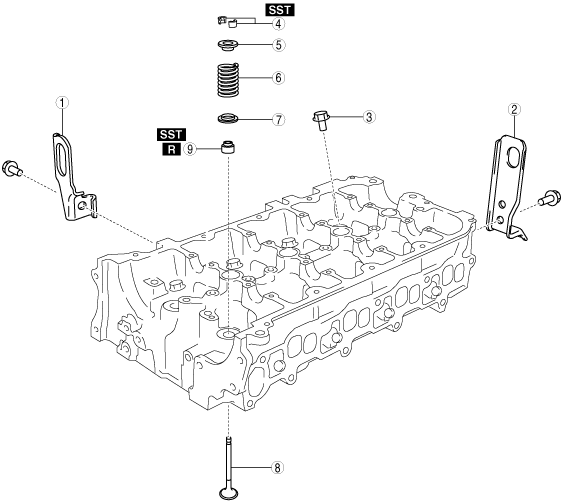

1.  Disassemble in the order indicated in the table.

bem5ze00000076

1
Engine hanger
2
Bracket
3
Pivot bolt
4
Valve keeper
(See Valve Keeper Removal Note.)
5
Upper valve spring seat
6
Valve spring
7
Lower valve spring seat
8
Valve
9
Valve seal
(See Valve Seal Removal Note.)


Valve Keeper Removal Note

1.  Remove the valve keeper using the SSTs.

When using the SSTs (49 0636 100B, 49 B012 0A2)
b3e0110e124
When using the SST (49 JE02 0A2) (Europe only)
belbze00000050

Valve Seal Removal Note

1.  Remove the valve seal using the SST.

bem5ze00000040
