CYLINDER HEAD ASSEMBLY (I) [MZR-CD 2.2]

id0110f2504300

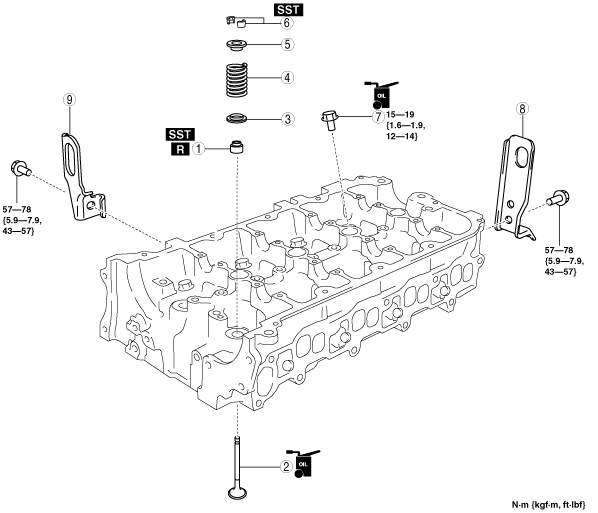

1.  Assemble in the order indicated in the table.

bem5ze00000077

1
Valve seal
2
Valve
3
Lower valve spring seat
4
Valve spring
5
Upper valve spring seat
6
Valve keeper
(See Valve Keeper Installation Note.)
7
Pivot bolt
(See Pivot Bolt Installation Note.)
8
Bracket
9
Engine hanger


Valve Keeper Installation Note

1.  Remove the valve keeper using the SSTs.

When using the SSTs (49 0636 100B, 49 B012 0A2)
b3e0110e124
When using the SST (49 JE02 0A2) (Europe only)
belbze00000050

Pivot Bolt Installation Note

1.  Apply engine oil to the pivot bolt screw or the cylinder head screw hole.

2.  Install the pivot bolt.
