PILOT BEARING INSPECTION [MZR-CD 2.2]

id0110f2505200

1.  Without removing the pilot bearing, turn the bearing while applying force in the axial direction.

•  If there is any malfunction, replace the pilot bearing.

Replacement

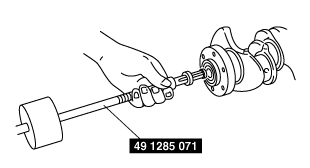

1.  Remove the pilot bearing from the crankshaft using the SST.

bem5ze00000141

2.  Install the pilot bearing using the SST.

bem5ze00000142
