TIMING CHAIN DISASSEMBLY [MZR-CD 2.2]

id0110f2505500

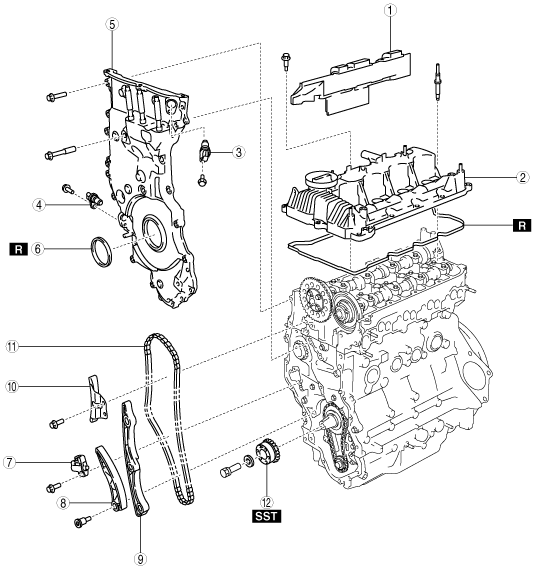

1.  Disassemble in the order indicated in the table.

bem5ze00000158

1	Insulator
2	Cylinder head cover (See Cylinder Head Cover Removal Note.)
3	CMP sensor
4	CKP sensor
5	Engine front cover
6	Front oil seal
7	Timing chain tensioner (See Timing Chain Tensioner Removal Note.)
8	Timing chain tensioner arm
9	Timing chain guide No.1
10	Timing chain guide No.2
11	Timing chain
12	Crankshaft sprocket (See Crankshaft Sprocket Removal Note.)

Cylinder Head Cover Removal Note

1.  Loosen the bolts in the order shown in the figure.

am6zzw00004461

Timing Chain Tensioner Removal Note

1.  Rotate the crankshaft clockwise and align the knock pin to the position shown in the figure. In this position, the No.1 cylinder is at the TDC of the compression stroke.

am6zzw00004200

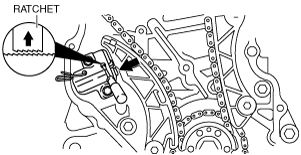

2.  Push up the ratchet using a screwdriver and slowly compress the piston.

am6zzw00004315

3.  Hold the piston using a wire or paper clip.

4.  Remove the timing chain tensioner.

Crankshaft Sprocket Removal Note

1.  Hold the crankshaft using the SST.

bem5ze00000156

2.  Remove the timing belt pulley using the SST.

bem5ze00000143
