CYLINDER BLOCK ASSEMBLY (I)

id011000504000

1.  Assemble in the order indicated in the table.

bpe8ze00000067

1
Upper cylinder block
2
Oil jet valve
3
Thrust bearing
(See Thrust Bearing And Main Bearing Assembly Note.)
4
Upper main bearing
(See Thrust Bearing And Main Bearing Assembly Note.)
5
Plate
(See Plate Assembly Note.)
6
Crankshaft
7
Lower main bearing
(See Thrust Bearing And Main Bearing Assembly Note.)
8
Lower cylinder block
(See Lower Cylinder Block Assembly Note.)
9
Connecting rod
10
Piston
11
Piston pin
(See Piston Pin Assembly Note.)
12
Snap ring
(See Snap Ring Assembly Note.)
13
Piston ring
(See Piston Ring Assembly Note.)
14
Upper connecting rod bearing
(See Connecting Rod Bearing Assembly Note.)
15
Piston, connecting rod
(See Piston, Connecting Rod Assembly Note.)
16
Lower connecting rod bearing
(See Connecting Rod Bearing Assembly Note.)
17
Connecting rod cap
(See Connecting Rod Cap Assembly Note.)
18
Pilot bearing (MTX)
(See Pilot Bearing Assembly Note.)


Thrust Bearing And Main Bearing Assembly Note


Thrust bearing

1.  Apply clean engine oil to the thrust bearings.

2.  Assemble the bearings with the oil groove of the thrust bearing pointed toward the sliding surface.

bpe1ze00000043


Main bearing

1.  Apply clean engine oil to the main bearings.

2.  Align the positioning tab of the main bearing with the positioning groove of the lower and upper cylinder block, and assemble the bearings.

bpe1ze00000044


Plate Assembly Note

1.  Install the plate using the following procedure:

(1)   Install the groove of the plate tooth to the position shown in the figure and temporarily tighten bolt A.
bpe2ue00000038
(2)  Temporarily tighten the bolt B.
(3)  Install bolt C and tighten the bolts to the specified tightening torque in the order of C, B, and A.
Tightening torque
20—26 N·m {2.1—2.6 kgf·m, 15—19 ft·lbf}


Lower Cylinder Block Assembly Note

1.  Completely clean and remove any oil, dirt, silicone sealant or other foreign matter that may be adhering to the lower cylinder block and cylinder block.

Caution
•  Using bolts with the old silicone sealant adhering could cause cracks in the cylinder block, etc.
ac5wzw00007109

2.  When reusing the lower cylinder block installation bolts, clean any old silicone sealant from the bolts.

Caution
•  Apply silicone sealant in a single, unbroken line.
•  To prevent silicone sealant from hardening, adhere the engine front cover and the cylinder block firmly within 10 min. after applying silicone sealant. After adhering them, tighten the installation bolts immediately.

3.  Apply silicone sealant (TB1217D or equivalent) to the lower cylinder block as shown in the figure.

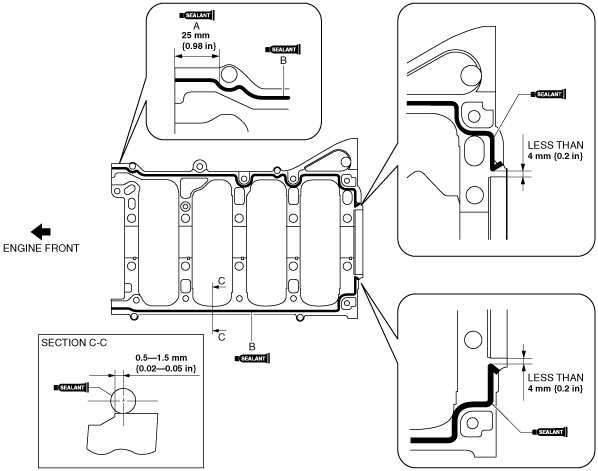

SKYACTIV-G 1.3, SKYACTIV-G 1.5

bpe7ze00000008

SKYACTIV-G 2.0

bpe1ze00000045

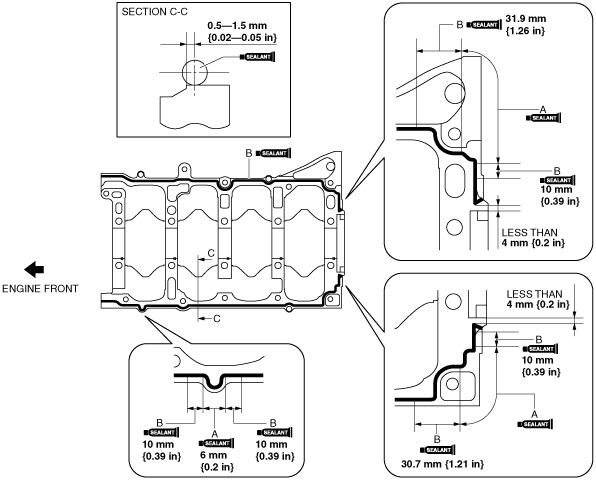

SKYACTIV-G 2.5

bpe1ze00000109
Bead thickness [SKYACTIV-G 1.3, SKYACTIV-G 1.5, SKYACTIV-G 2.0]
A: 3—7 mm {0.12—0.27 in}
B: 2—6 mm {0.1—0.2 in}
Bead thickness [SKYACTIV-G 2.5]
2—6 mm {0.1—0.2 in}

4.  Install the lower cylinder block.

5.  Tighten the lower cylinder block installation bolts using the following procedure:

(1)  Apply clean engine oil to seating surface and thread of the lower cylinder block installation bolts A.
(2)  Tighten the lower cylinder block installation bolts A in the order shown in the figure using the following procedure:
bpe2ue00000041
Tightening procedure [SKYACTIV-G 1.3, SKYACTIV-G 1.5, SKYACTIV-G 2.0]
Step 1: 38—42 N·m {3.9—4.2 kgf·m, 29—30 ft·lbf}
Step 2: Loosen all the bolts (until bolts are torque-free).
Step 3: 24—28 N·m {2.5—2.8 kgf·m, 18—20 ft·lbf}
Step 4: 57.5—62.5°
Tightening procedure [SKYACTIV-G 2.5]
Step 1: 38—42 N·m {3.9—4.2 kgf·m, 29—30 ft·lbf}
Step 2: Loosen all the bolts (until bolts are torque-free).
Step 3: 30—34 N·m {3.1—3.4 kgf·m, 23—25 ft·lbf}
Step 4: 57.5—62.5°
(3)  Tighten the lower cylinder block installation bolts B in the order shown in the figure.
bpe2ue00000042
Tightening torque
19—25 N·m {2.0—2.5 kgf·m, 15—18 ft·lbf}

6.  After verifying that silicone sealant protrudes to the rear oil seal press-in part, wipe away the excess silicone sealant.

•  If silicone sealant does not protrude to the rear oil seal press-in part, remove the lower cylinder block and apply silicone sealant again.


Piston Pin Assembly Note

1.  Apply clean engine oil to the piston pin.

2.  Insert the piston pin to the piston and connecting rod.

Note
•  When assembling the piston to the connecting rod, each one can be assembled in either direction.

Snap Ring Assembly Note

Caution
•  Do not compress the outer diameter of the snap ring more than necessary when assembling the snap ring.

1.  Insert a new snap ring using a thin plier.


Piston Ring Assembly Note

Note
•  It is not required to position the end gap between the top ring and second ring.

1.  Assemble the oil ring so that the end gap of each oil ring rail does not overlap as shown in the figure.

bpe2ue00000043

2.  Assemble so that the identification paint marks on the top and second rings are visible to the right side of each end gap.

bpe1ze00000047

Note
•  If there are no identification paint marks, assemble the rings as follows:
bpe2ue00000044
Top ring
Assemble the ring with the notch (large side) on the inner circumference of the ring at the top.
Second ring
Assemble the ring with the notch on the outer circumference of the ring pointing downward.

Connecting Rod Bearing Assembly Note

1.  Apply engine oil to the connecting rod bearings.

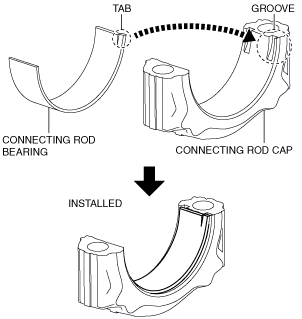

2.  Align the positioning tab of the connecting rod bearing with the positioning groove of the connecting rod and connecting rod cap, and assemble the bearings.

bpe1ze00000048


Piston, Connecting Rod Assembly Note

1.  Insert the piston into the cylinder with the mark on top of the piston facing the intake side.

bpe2ue00000045


Connecting Rod Cap Assembly Note

1.  Measure the length of the connecting rod cap bolt

•  If it exceeds the maximum specification, replace the connecting rod cap bolt.
bpe8ze00000046
Standard connecting rod cap bolt length
SKYACTIV-G 1.3: 36.2—36.6 mm {1.43—1.44 in}
SKYACTIV-G 1.5: 41.7—42.3 mm {1.65—1.66 in}
SKYACTIV-G 2.0 Except MX-5 (ND) VIN Serial No.300001-, SKYACTIV-G 2.5: 43.7—44.3 mm {1.73—1.74 in}
SKYACTIV-G 2.0 MX-5 (ND) VIN Serial No.300001-: 39.2—39.8 mm {1.55—1.56 in}
Maximum connecting rod cap bolt length
SKYACTIV-G 1.3: 36.95 mm {1.455 in}
SKYACTIV-G 1.5: 42.70 mm {1.681 in}
SKYACTIV-G 2.0 Except MX-5 (ND) VIN Serial No.300001-, SKYACTIV-G 2.5: 45.00 mm {1.772 in}
SKYACTIV-G 2.0 MX-5 (ND) VIN Serial No.300001-: 39.8 mm {1.57 in}

2.  Position so that the broken, rough faces of the connecting rods and connecting rod caps are aligned exactly, and assemble the connecting rod caps.

3.  Tighten the connecting rod cap bolts in the following two steps.

Tightening procedure [SKYACTIV-G 1.3]
Step 1: 18—22 N·m {1.9—2.2 kgf·m, 14—16 ft·lbf}
Step 2: 85—95°
Tightening procedure [SKYACTIV-G 1.5]
Step 1: 23—26 N·m {2.4—2.6 kgf·m, 17—19 ft·lbf}
Step 2: 85—95°
Tightening procedure [SKYACTIV-G 2.0 Except MX-5 (ND) VIN Serial No.300001-, SKYACTIV-G 2.5]
Step 1: 26—32 N·m {2.7—3.2 kgf·m, 20—23 ft·lbf}
Step 2: 80—100°
Tightening procedure [SKYACTIV-G 2.0 MX-5 (ND) VIN Serial No.300001-]
Step 1: 14—16 N·m {143—163 kgf·cm, 124—141 in·lbf}
Step 2: 145—155°


Pilot Bearing Assembly Note

1.  Install new pilot bearing to the specified position using the following tools.

bpe2ue00000046

Tool
Snap-on brand millimeter size bushing driver set (A160M) adapter A160M7 (20—22 mm {0.79—0.86 in})
•  Use the adapter with the 20 mm {0.79 in} side of the A160M7 (20—22 mm {0.79—0.86 in}) facing the pilot bearing side.
Substitution tool
Outer diameter: 21 mm {0.83 in}
Inner diameter: 19 mm {0.75 in}
Standard pilot bearing position
Distance A of pilot bearing from crankshaft end: 1.5—2.5 mm {0.060—0.098 in}
bpe2ue00000047
