CYLINDER HEAD ASSEMBLY (I)

id011000504300

1.  Assemble in the order indicated in the table.

bpe2ue00000164

1
Lower valve spring seat
2
Valve seal
(See Valve Seal Assembly Note.)
3
Valve
4
Valve spring
(See Valve Spring Assembly Note.)
5
Upper valve spring seat
6
Valve keeper
(See Valve Keeper Assembly Note.)


Valve Seal Assembly Note

1.  Press in the valve seal to the valve guide using the SST by hand.

bpe1ze00000057

Valve seal identification color
IN: GREEN
EX: GRAY


Valve Spring Assembly Note

Caution
•  The valve springs differ depending on the IN and EX sides.Therefore, verify the free length or identification paint beforehand and inspect the valve springs.

SKYACTIV-G 1.3, SKYACTIV-G 1.5 (Except MX-5 (ND))

bpe8ze00000019

SKYACTIV-G 1.5 (MX-5 (ND))

bpe8ze00000020

SKYACTIV-G 2.0 Except MX-5 (ND) VIN Serial No.300001-

bpe7ze00000005

SKYACTIV-G 2.0 MX-5 (ND) VIN Serial No.300001-

bpe8ze00000069

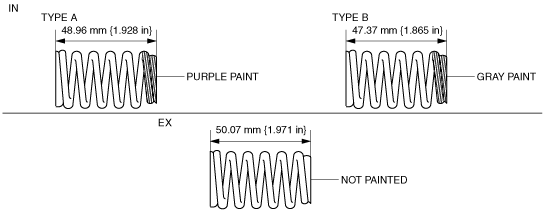

SKYACTIV-G 2.5

bpe8ze00000026

1.  Assemble the valve spring with the small diameter side of the valve spring facing upward.


Valve Keeper Assembly Note

1.  Install the valve keeper using the SST.

When using the SSTs (49 0636 100B, 49 B012 0A2)

bpe7ze00000014

When using the SST (49 JE02 0A2) (Europe only)

bpe1ze00000035
