OUTLINE OF OPERATION

D6E051700000A08

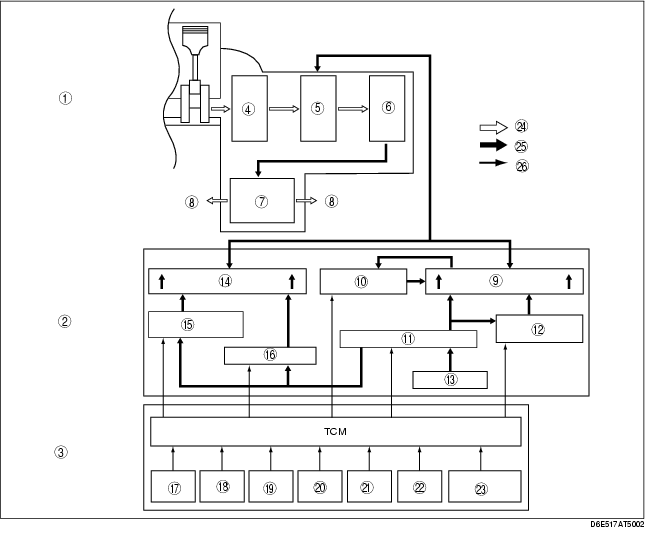

• The operation of the electronic automatic transaxle is classified into three systems: the electronic control mechanism, the hydraulic pressure control mechanism, and the powertrain mechanism (includes the torque converter mechanism). The operation of each system is as follows:
- Electronic control mechanism
• According to the signals from the switches and sensors in the input system, the TCM outputs the signal which matches the present driving condition to the linear type solenoid, ON/OFF type solenoids and the duty-cycle type solenoids in the hydraulic pressure control mechanism.
- Hydraulic pressure control mechanism
• According to the signals from the TCM, each solenoid operates to switch the hydraulic passages in the control valve body and controls the clutch engagement pressure.
• The line pressure is adjusted by the linear type pressure control solenoid A and duty-cycle type pressure control solenoid B. The hydraulic passages are switched by the ON/OFF type solenoids (shift solenoids D and E.) And the clutch engagement pressure is controlled by the duty-cycle type solenoids (shift solenoids A, B, and C) and ON/OFF type solenoid (shift solenoids F).
- Powertrain mechanism
• The driving force from the engine is transmitted through the torque converter to the transaxle.
• The transmitted driving force operates each clutch and brake according to the clutch engagement pressure from the duty-cycle type solenoid (shift solenoids A, B, and C), ON/OFF type solenoid (shift solenoids F) and the planetary gears change the gear ratio to the optimal driving force. The changed driving force is transmitted through the differential to the axle shaft and then the tires.

.

1
Powertrain mechanism
2
Hydraulic pressure control mechanism
3
Electronic control mechanism
4
Torque converter
5
Clutches, brakes
6
Planetary gear
7
Differential
8
Tire
9
Primary control valve body
10
Shift solenoid D, E (ON/OFF type)
11
Pressure control solenoid A (linear type)
12
Shift solenoid A, B, C (duty-cycle type)
13
Oil pump
14
Secondary control valve body
15
Pressure control solenoid B (duty-cycle type)
16
Shift solenoid F (ON/OFF type)
17
Oil pressure switch signal
18
Vehicle speed
19
ATF temperature
20
Forward clutch drum revolution speed
21
Engine revolution speed
22
Throttle position signal
23
Secondary gear revolution speed
24
Power flow
25
Hydraulic pressure control signal
26
Electronic signal
