POWER FLOW STRUCTURE
D6E051700000A11

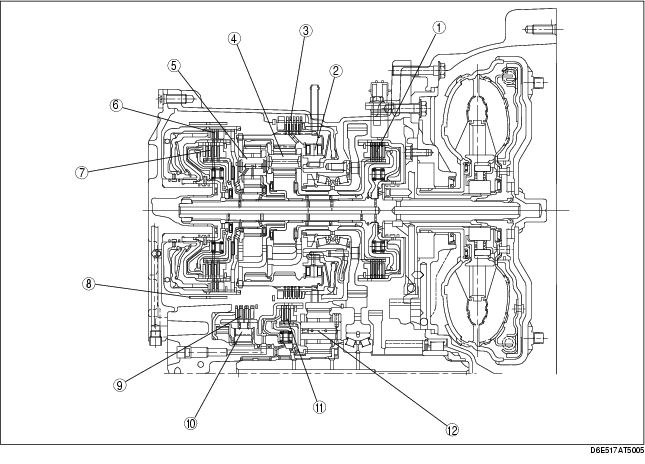

• The powertrain mechanism of the FS5A-EL type consists of four pairs of clutches, two pairs of brakes, band brake, two pairs of one-way clutches, and three pairs of single type planetary gears.
.
|
1
|
Forward clutch
|
|
2
|
One-way clutch No.1
|
|
3
|
Low and reverse brake
|
|
4
|
Front planetary gear
|
|
5
|
Rear planetary gear
|
|
6
|
Reverse clutch
|
|
7
|
3-4 clutch
|
|
8
|
2-4 brake band
|
|
9
|
Reduction brake
|
|
10
|
One-way clutch No.2
|
|
11
|
Direct clutch
|
|
12
|
Secondary planetary gear
|
