TORQUE CONVERTER OUTLINE
D6E051719100A01
• The torque converter clutch mechanism mechanically engages the pump impeller and the turbine runner under a specified condition, and transmits the power, not through the fluid, but directly, preventing the slip loss of the torque converter.
• The torque converter has obtained sufficient transaxle efficiency and torque converting ratio that matches the output characteristic of each engine.
.
|

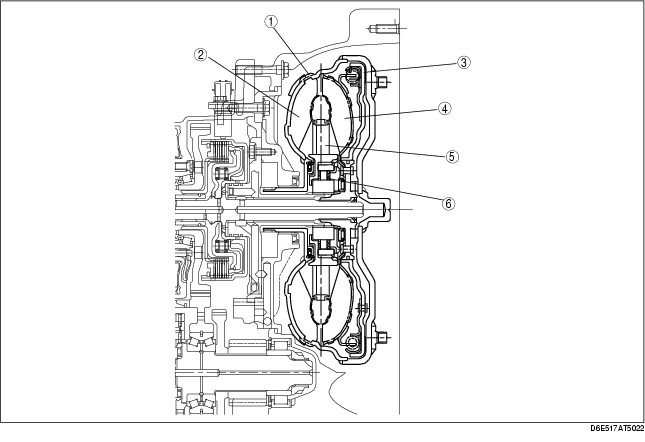

1
|
Torque converter
|
|
2
|
Pump impeller
|
|
3
|
TCC piston
|
|
4
|
Turbine runner
|
|
5
|
Stator
|
|
6
|
One-way clutch
|
