FORWARD CLUTCH, 3-4 CLUTCH HYDRAULIC CIRCUIT OUTLINE
D6E051719500A11

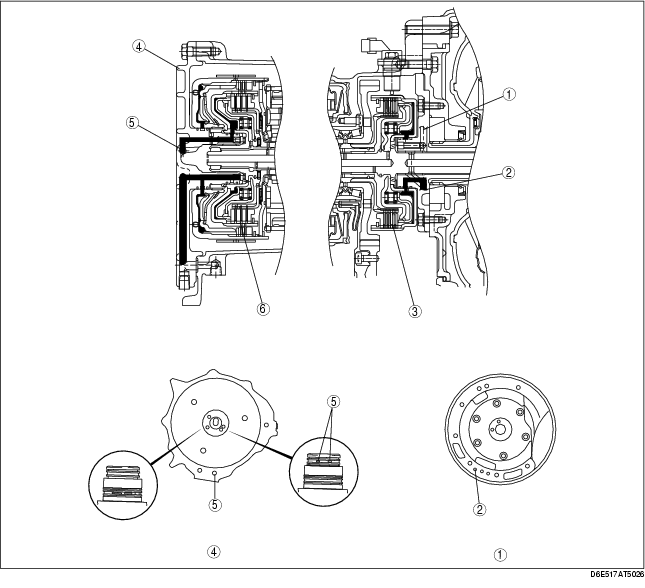

• By designing exclusive passages for the forward clutch and the 3-4 clutch in the transaxle case, via the oil pump and end cover the hydraulic pressure passages are shortened and control during clutch engagement is improved.
1
Oil pump
2
Forward clutch hydraulic passage
3
Forward clutch
4
End cover
5
3-4 clutch hydraulic passage
6
3-4 clutch
