FORWARD CLUTCH, 3-4 CLUTCH, REVERSE CLUTCH, DIRECT CLUTCH, LOW AND REVERSE BRAKE, REDUCTION BRAKE OPERATION
D6E051719500A13

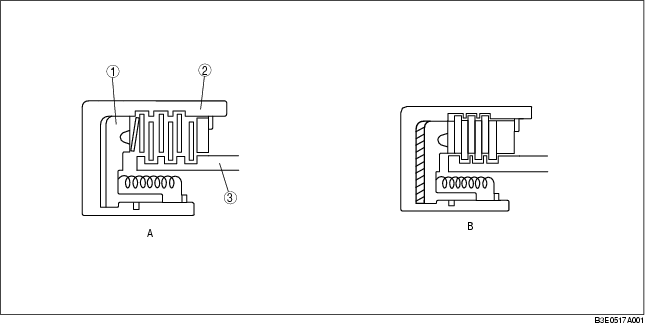

• The basic structure is as shown in the figure below. In figure A, the fluid is in the clutch plates (drive plates, driven plates) and the power is not transmitted because of the fluid slippage on each plate. Figure B shows the clutch condition with the hydraulic pressure acted on the piston; the drive plates and the driven plates are pressed tightly together to transmit the clutch drum rotation speed to the hub. When the hydraulic pressure in the piston is drained, the clutches are separated because of the return spring and return to the condition in figure A.
|
1
|
Piston
|
|
2
|
Clutch drum
|
|
3
|
Clutch hub
|
• The dished plates used for the reverse clutch and the low and reverse brake reduce the shock caused by the sudden clutch engagement. The piston check ball built in the 2-4 brake drum (reverse clutch) drains the ATF only during freewheel to prevent the hydraulic pressure from increasing to half-engage the clutches because of the residual ATF. In the forward clutch, the 3-4 clutch and the direct clutch, the centrifugal balance chamber is installed opposite the general clutch chamber. The centrifugal balance chamber of forward clutch, 3-4 clutch is always filled with the ATF from the exclusive lubrication passage of the turbine shaft. The centrifugal balance chamber of Direct clutch is always filled with the ATF from the exclusive lubrication passage of the counter shaft.
|
1
|
Forward clutch
|
|
2
|
3-4 clutch
|
|
3
|
Low and reverse brake
|
|
4
|
Reverse clutch
|
|
5
|
Reduction brake
|
|
6
|
Direct clutch
|
|
7
|
Snap ring
|
|
8
|
Retaining plate
|
|
9
|
Drive plate
|
|
10
|
Driven plate
|
|
11
|
Centrifugal balance chamber
|
|
12
|
Seal plate
|
|
13
|
Forward clutch piston (bonded seal piston)
|
|
14
|
Spring and retainer component
|
|
15
|
3-4 clutch piston (bonded seal piston)
|
|
16
|
Dish plate
|
|
17
|
Low and reverse brake piston (bonded seal piston)
|
|
18
|
Piston return spring
|
|
19
|
2-4 brake drum
|
|
20
|
Piston check ball
|
|
21
|
Reverse clutch piston (bonded seal piston)
|
|
22
|
Reduction brake piston (bonded seal piston)
|
|
23
|
Direct clutch piston (bonded seal piston)
|
