ACCUMULATORS DISASSEMBLY/ASSEMBLY

D6E051721272A01

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

1
Servo apply accumulator
2
Servo apply accumulator large spring
3
Servo apply accumulator small spring
4
Forward accumulator
5
Forward accumulator large spring
6
Forward accumulator small spring

Assembly Procedure

1. Measure the spring free length.

Accumulator spring (standard)

Spring

Outer diameter mm {in}

Free length

mm {in}

No. of coils

Wire diameter

mm {in}

Servo apply accumulator large spring
21.0 {0.827}
67.8 {2.669}
10.3
3.5 {0.138}
Servo apply accumulator small spring
13.0 {0.512}
67.8 {2.669}
17.1
2.2 {0.087}
Forward accumulator large spring
21.0 {0.827}
75.0 {2.953}
10.7
2.3 {0.091}
Forward accumulator small spring
15.6 {0.614}
49.0 {1.929}
7.7
2.4 {0.094}

• If not as specified, replace the spring.

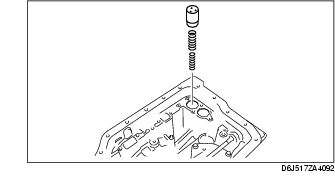

2. Install the forward accumulator small spring, forward accumulator large spring and forward accumulator.

3. Install the servo apply accumulator small spring, servo apply accumulator large spring and servo apply accumulator.
