SECONDARY GEAR AND OUTPUT GEAR ASSEMBLY

id051700664000

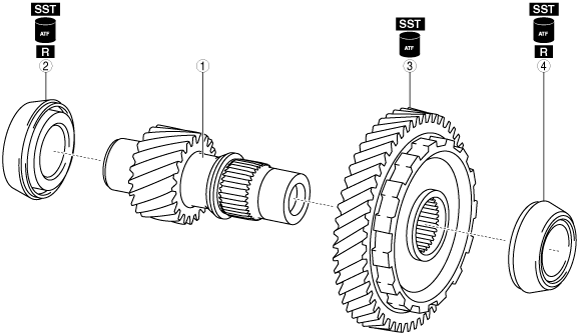

Structural View

bfw2za00000695

1	Output gear
2	Taper roller bearing (converter housing side) (inner diameter 35.5 mm {1.398 in})
3	Secondary gear
4	Taper roller bearing (transaxle case side) (inner diameter 35 mm {1.378 in})

Assembly Procedure

1.  Assemble a new taper roller bearing (converter housing side) using the following procedure:

Caution

•  Use a new taper roller bearing. If taper roller bearing with a deformed cage are reused, it may cause a transaxle malfunction.

Note

•  Taper roller bearing size: Inner diameter approx. 35.5 mm {1.398 in}

(1)  Apply ATF (ATF FZ) to the engagement area of the new taper roller bearing and output gear.

(2)  Using the SST and press, assemble the new taper roller bearing.

bfw2za00000696

bfw2za00000697

A  :Press

2.  Assemble the secondary gear using the following procedure:

(1)  Apply ATF (ATF FZ) to the engagement area (spline area) of the secondary gear and output gear.

(2)  Using the SST and press, assemble the secondary gear.

bfw2za00000698

bfw2za00000699

A  :Press

3.  Assemble the taper roller bearing (transaxle case side) using the following procedure:

Note

•  Taper roller bearing size: Inner diameter approx. 35 mm {1.378 in}

(1)  Apply ATF (ATF FZ) to the engagement area of the taper roller bearing and output gear.

(2)  Using the SST and press, assemble the taper roller bearing.

bfw2za00000700

bfw2za00000701

A  :Press
