MEASUREMENT/ADJUSTMENT VALUE INPUT SHEET [FW6A-EL/FW6AX-EL]

id0517006653z3

Differential Backlash Measurement/Adjustment

azzzcw00000074

Description example

bfw2za00000003

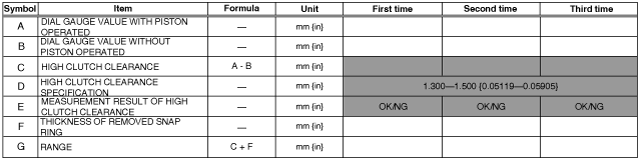

High Clutch Clearance Measurement/Adjustment

azzzcw00000066

Description example

azzzcw00000067

Low Clutch Clearance Measurement/Adjustment

bfw2za00000018

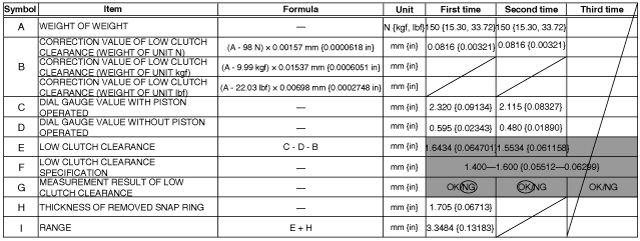

Description example

bfw2za00000019

R-3-5 Brake Clearance Measurement/Adjustment

azzzcw00000072

Description example

azzzcw00000073

2-6 Brake Clearance Measurement/Adjustment

bfw2za00000020

Description example

bfw2za00000021

Low and Reverse Brake Clearance Measurement/Adjustment

bfw2za00000022

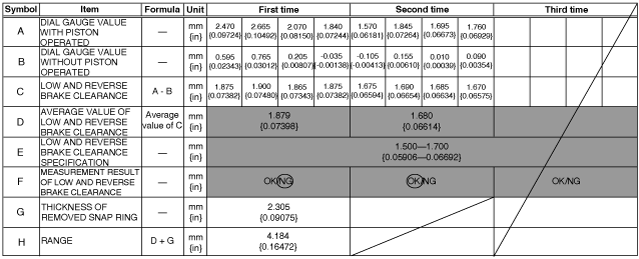

Description example

bfw2za00000023

Secondary Gear and Output Gear Preload Measurement/Adjustment [FW6A-EL]

azzzcw00000076

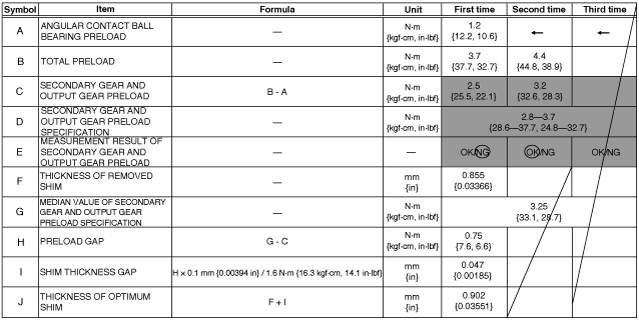

Description example

azzzcw00000077

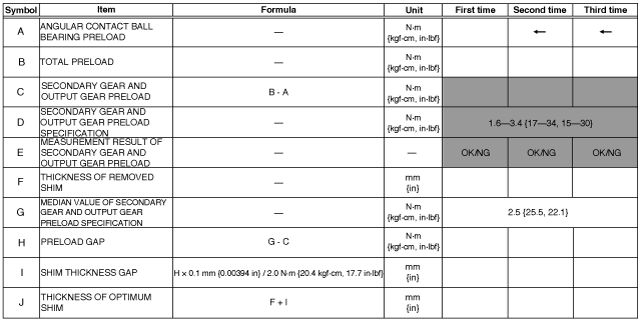

Secondary Gear and Output Gear Preload Measurement/Adjustment [FW6AX-EL]

bfw4ua00000001

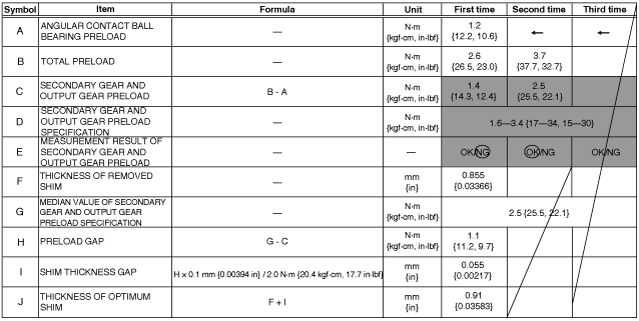

Description example

bfw4ua00000002

Ring Gear and Differential Preload Measurement/Adjustment [FW6A-EL]

bfw2za00000175

Description example

bfw2za00000176

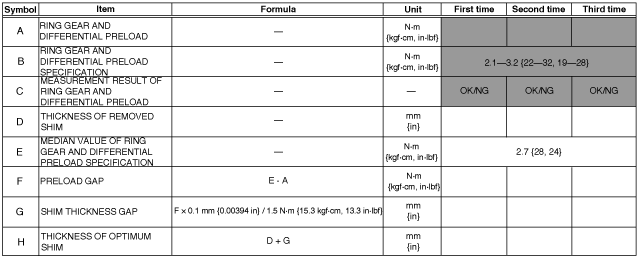

Ring Gear and Differential Preload Measurement/Adjustment [FW6AX-EL]

bfw2za00001173

Description example

bfw2za00001174

Total End Play Measurement/Adjustment

azzzcw00000080

Description example

azzzcw00000081
