JACKING POSITIONS, VEHICLE LIFT (2 SUPPORTS) AND SAFETY STAND (RIGID RACK) POSITIONS
id000000800500
Jacking Positions
-
Warning
-
• Improperly jacking a vehicle is dangerous. The vehicle can slip off the jack and cause serious injury. Use only the correct front and rear jacking points and block the wheels.
• Use safety stands to support the vehicle after it has been lifted.

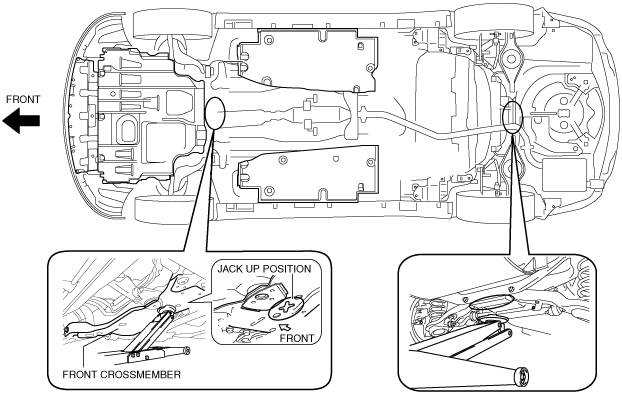

Front
-
Note
-
• To prevent obstruction between the jack body and front bumper when the jack body is inserted, use a low-floor type jack.
-
• Near the center of the front crossmember.
Rear
-
• At the center of the rear crossmember.
Vehicle Lift Positions, Safety Stand Positions
Front and rear
-
Warning
-
• Lifting a vehicle is dangerous. The vehicle can slip off the lift and cause serious injury and/or vehicle damage. Make sure that the vehicle is on the lift horizontally by adjusting the height of support at the end of the arm of the lift.
-
Caution
-
• For vehicles with side step molding, be careful not to damage the side step molding by hitting it with auto-lift arms or a safety stand.
-
• Both sides of the vehicle, on side sills.
