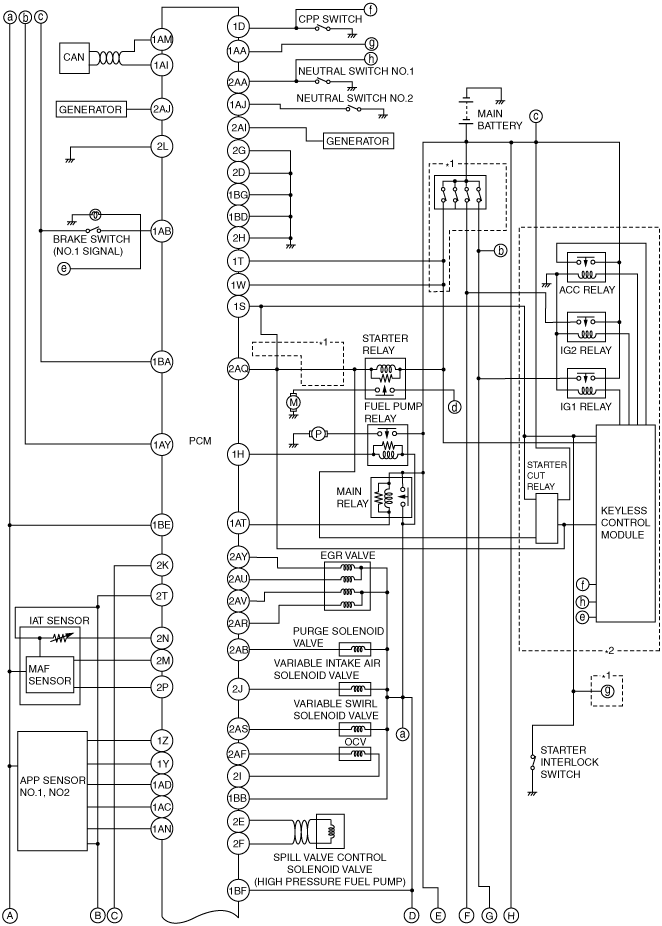

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [MZR 2.0 DISI i-stop]

id0102d4800100

am3zzw00012355

am3zzw00012356

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system
