ON-BOARD DIAGNOSTIC WIRING DIAGRAM [MZR 1.5, MZR 1.6]

id0102f0800100

Vehicles Without Immobilizer System

am3zzw00012359

am3zzw00012360

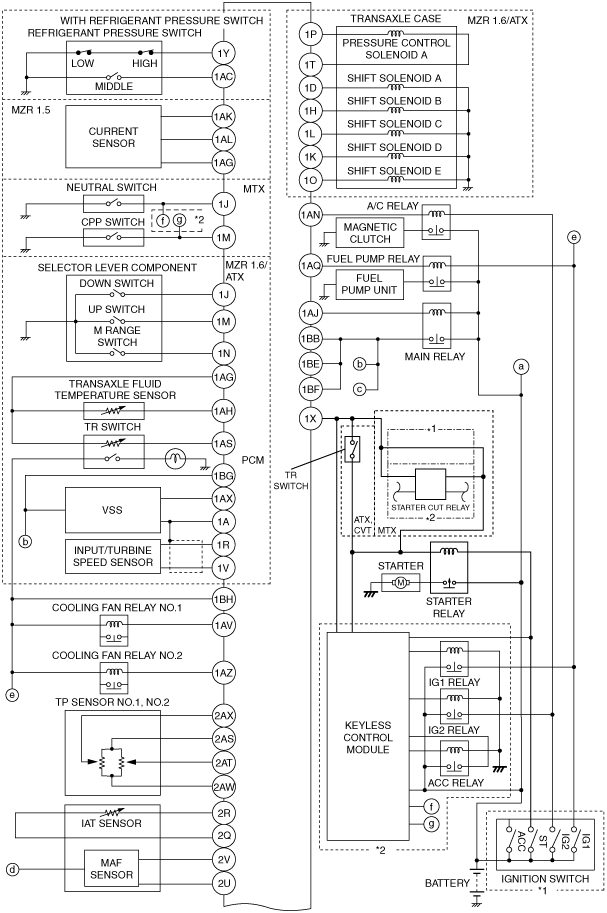

Vehicles With Immobilizer System

am3zzw00012361

am3zzw00012360

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system
