ON-BOARD DIAGNOSTIC WIRING DIAGRAM [MZR 2.0, MZR 2.5]

id0102g3800100

Vehicles Without Immobilizer System

am3zzw00012366

am3zzw00012367

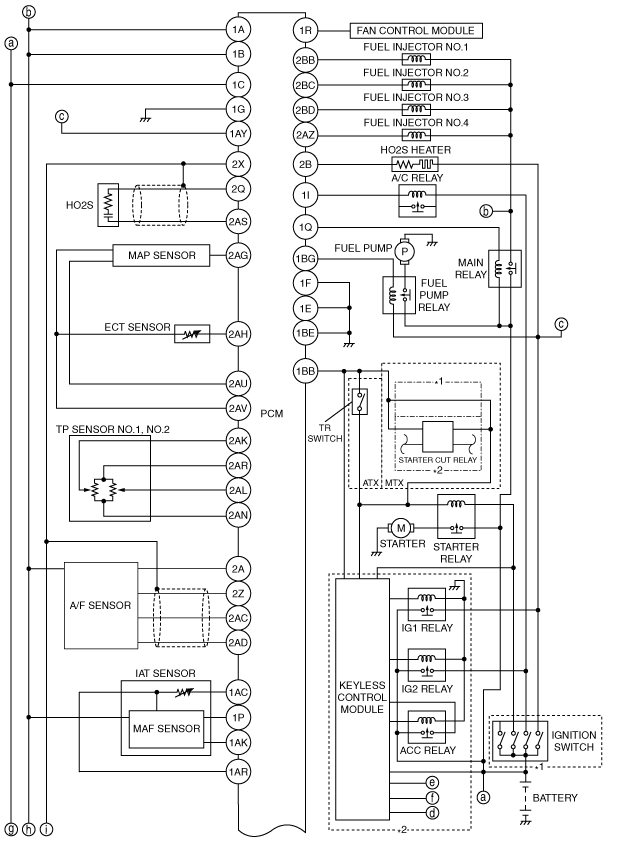

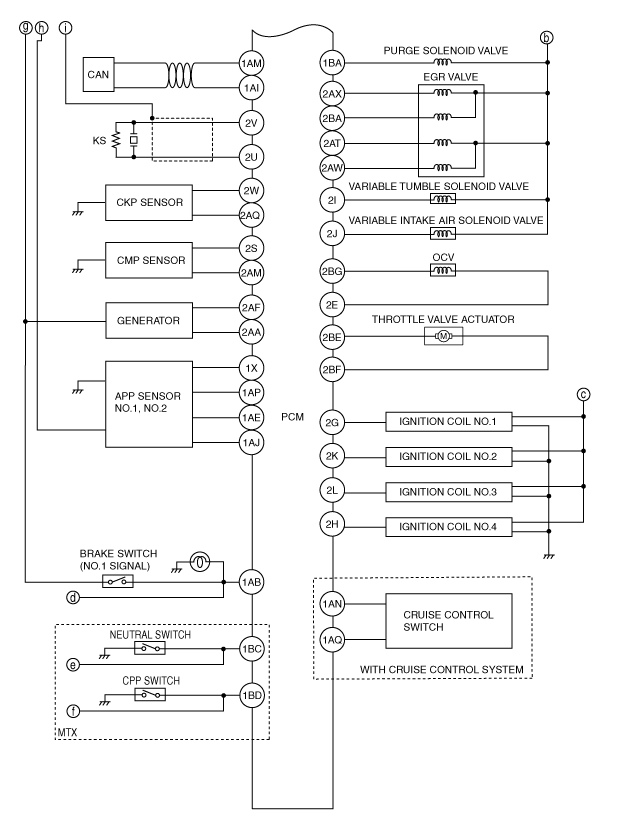

Vehicles With Immobilizer System

am3zzw00012368

am3zzw00012367

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system
