DTC P0193:00 [MZR 2.3 DISI Turbo]

id0102g4147800

DTC P0193:00

Fuel pressure sensor circuit high input

DETECTION CONDITION

•  If the input voltage from the fuel pressure sensor is more than 4.8 V for 5.3 s, the PCM determines that the fuel pressure sensor circuit is high.

Diagnostic support note

•  This is a continuous monitor (CCM).

•  The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.

•  FREEZE FRAME DATA (Mode 2)/Snapshot data is available.

•  The DTC is stored in the PCM memory.

POSSIBLE CAUSE

•  Fuel pressure sensor connector or terminals malfunction

•  PCM connector or terminals malfunction

•  Short to power supply in wiring harness between fuel pressure sensor terminal B and PCM terminal 2R

•  Fuel pressure sensor power supply circuit and signal circuit are shorted to each other.

•  Open circuit in wiring harness between the following terminals:

―  Fuel pressure sensor terminal B—PCM terminal 2R

―  Fuel pressure sensor terminal A—PCM terminal 2P

•  Fuel pressure sensor malfunction

•  PCM malfunction

DTC P0193:00	Fuel pressure sensor circuit high input
DETECTION CONDITION	• If the input voltage from the fuel pressure sensor is more than 4.8 V for 5.3 s, the PCM determines that the fuel pressure sensor circuit is high. Diagnostic support note • This is a continuous monitor (CCM). • The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle. • FREEZE FRAME DATA (Mode 2)/Snapshot data is available. • The DTC is stored in the PCM memory.
POSSIBLE CAUSE	• Fuel pressure sensor connector or terminals malfunction • PCM connector or terminals malfunction • Short to power supply in wiring harness between fuel pressure sensor terminal B and PCM terminal 2R • Fuel pressure sensor power supply circuit and signal circuit are shorted to each other. • Open circuit in wiring harness between the following terminals: ― Fuel pressure sensor terminal B—PCM terminal 2R ― Fuel pressure sensor terminal A—PCM terminal 2P • Fuel pressure sensor malfunction • PCM malfunction

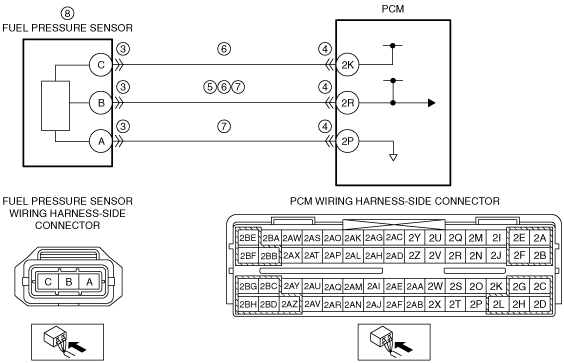

Diagnostic procedure

STEP	INSPECTION		ACTION
1	VERIFY FREEZE FRAME DATA (MODE 2)/SNAPSHOT DATA HAS BEEN RECORDED • Has the FREEZE FRAME DATA (Mode 2)/snapshot data been recorded?	Yes	Go to the next step.
1		No	Record the FREEZE FRAME DATA (Mode 2)/snapshot data on the repair order, then go to the next step.
2	VERIFY RELATED SERVICE INFORMATION AVAILABILITY • Verify related Service Information availability. • Is any related Service Information available?	Yes	Perform repair or diagnosis according to the available Service Information. • If the vehicle is not repaired, go to the next step.
2		No	Go to the next step.
3	INSPECT FUEL PRESSURE SENSOR CONNECTOR CONDITION • Switch the ignition to off. • Disconnect the fuel pressure sensor connector. • Inspect for poor connection (such as damaged/pulled-out pins, and corrosion). • Is there any malfunction?	Yes	Repair or replace the connector and/or terminals, then go to Step 9.
3		No	Go to the next step.
4	INSPECT PCM CONNECTOR CONDITION • Disconnect the PCM connector. • Inspect for poor connection (such as damaged/pulled-out pins, and corrosion). • Is there any malfunction?	Yes	Repair or replace the connector and/or terminals, then go to Step 9.
4		No	Go to the next step.
5	INSPECT FUEL PRESSURE SENSOR SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY • Fuel pressure sensor and PCM connectors are disconnected. • Switch the ignition to ON (engine off). • Measure the voltage at the fuel pressure sensor terminal B (wiring harness-side). • Is there any voltage?	Yes	Repair or replace the wiring harness for a possible short to power supply, then go to Step 9.
5		No	Go to the next step.
6	INSPECT FUEL PRESSURE SENSOR POWER SUPPLY CIRCUIT AND SIGNAL CIRCUIT FOR SHORT TO EACH OTHER • Fuel pressure sensor and PCM connectors are disconnected. • Switch the ignition to off. • Inspect for continuity between fuel pressure sensor terminals C and B (wiring harness-side). • Is there continuity?	Yes	Repair or replace the wiring harness for a possible short to each other, then go to Step 9.
6		No	Go to the next step.
7	INSPECT FUEL PRESSURE SENSOR CIRCUIT FOR OPEN CIRCUIT • Fuel pressure sensor and PCM connectors are disconnected. • Inspect for continuity between the following terminals (wiring harness-side): ― Fuel pressure sensor terminal B—PCM terminal 2R ― Fuel pressure sensor terminal A—PCM terminal 2P • Is there continuity?	Yes	Go to the next step.
7		No	Repair or replace the wiring harness for a possible open circuit, then go to Step 9.
8	INSPECT FUEL PRESSURE SENSOR • Reconnect all disconnected connectors. • Inspect the fuel pressure sensor. (See FUEL PRESSURE SENSOR INSPECTION [MZR 2.3 DISI Turbo].) • Is there any malfunction?	Yes	Replace the fuel pressure sensor, then go to the next step. (See FUEL PRESSURE SENSOR REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)
8		No	Go to the next step.
9	VERIFY DTC TROUBLESHOOTING COMPLETED • Make sure to reconnect all disconnected connectors. • Clear the DTC from the PCM memory using the M-MDS. (See AFTER REPAIR PROCEDURE [MZR 2.3 DISI Turbo].) • Perform the KOEO or KOER self test. (See KOEO/KOER SELF TEST [MZR 2.3 DISI Turbo].) • Is the same DTC present?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the PCM. (See PCM REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) Go to the next step.
9		No	Go to the next step.
10	VERIFY AFTER REPAIR PROCEDURE • Perform the “AFTER REPAIR PROCEDURE”. (See AFTER REPAIR PROCEDURE [MZR 2.3 DISI Turbo].) • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [MZR 2.3 DISI Turbo].)
10		No	DTC troubleshooting completed.
