DTC P0138:00 [MZR 2.3 DISI Turbo]


id0102g4702600

DTC P0138:00

HO2S circuit high input

DETECTION CONDITION
•  The PCM monitors the input voltage from the HO2S. If the input voltage from the HO2S is above 1.2 V or HO2S bias voltage above 1.7 V for 5 s, the PCM determines that the circuit input is high.
Diagnostic support note
•  This is an intermittent monitor (A/F sensor, HO2S).
•  The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
•  PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle.
•  FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
•  The DTC is stored in the PCM memory.
POSSIBLE CAUSE
•  HO2S connector or terminals malfunction
•  PCM connector or terminals malfunction

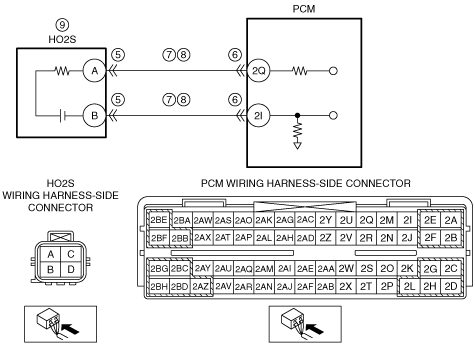

•  Short to power supply in wiring harness between the following terminals:
―  HO2S terminal A—PCM terminal 2Q
―  HO2S terminal B—PCM terminal 2I
•  HO2S signal circuit and ground circuit are shorted to each other.
•  HO2S malfunction
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION

1
IDENTIFY TRIGGER DTC FOR FREEZE FRAME DATA (MODE 2)
•  Perform the Freeze Frame PID Data Access Procedure.
•  Is the DTC P0138:00 on FREEZE FRAME DATA (Mode 2)?
Yes
Go to the next step.
No
Go to the troubleshooting procedures for DTC on FREEZE FRAME DATA (Mode 2).
2
VERIFY FREEZE FRAME DATA (MODE 2)/SNAPSHOT DATA AND DIAGNOSTIC MONITORING TEST RESULTS HAVE BEEN RECORDED
•  Have the FREEZE FRAME DATA (Mode 2)/snapshot data and DIAGNOSTIC MONITORING TEST RESULTS (A/F sensor, HO2S related) been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA (Mode 2)/snapshot data and DIAGNOSTIC MONITORING TEST RESULTS on the repair order, then go to the next step.
3
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
4
VERIFY RELATED PENDING CODE AND/OR DTC
•  Switch the ignition to off, then to ON (engine off).
•  Perform the Pending Trouble Code Access Procedure and DTC Reading Procedure.
•  Are any other PENDING CODEs and/or DTCs present?
Yes
Go to the applicable PENDING CODE or DTC inspection.
No
Go to the next step.
5
INSPECT HO2S CONNECTOR CONDITION
•  Switch the ignition to off.
•  Disconnect the HO2S connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, and corrosion).
•  Is there any malfunction?
Yes
Repair or replace the connector and/or terminals, then go to Step 10.
No
Go to the next step.
6
INSPECT PCM CONNECTOR CONDITION
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, and corrosion).
•  Is there any malfunction?
Yes
Repair or replace the connector and/or terminals, then go to Step 10.
No
Go to the next step.
7
INSPECT HO2S CIRCUIT FOR SHORT TO POWER SUPPLY
•  HO2S and PCM connectors are disconnected.
•  Switch the ignition to ON (engine off).
•  Measure the voltage at the following terminals (wiring harness-side):
―  HO2S terminal A
―  HO2S terminal B
•  Is there any voltage?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to Step 10.
No
Go to the next step.
8
INSPECT HO2S SIGNAL CIRCUIT AND GROUND CIRCUIT FOR SHORT TO EACH OTHER
•  HO2S and PCM connectors are disconnected.
•  Switch the ignition to off.
•  Inspect for continuity between HO2S terminals A and B (wiring harness-side).
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to each other, then go to Step 10.
No
Go to the next step.
9
INSPECT HO2S
•  Reconnect all disconnected connectors.
•  Is there any malfunction?
Yes
Replace the HO2S, then go to the next step.
No
Intermittent concern exists.
•  Perform the “INTERMITTENT CONCERN TROUBLESHOOTING” procedure.
10
VERIFY DTC TROUBLESHOOTING COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Perform the KOEO or KOER self test.
•  Is the PENDING CODE for this DTC present?
Yes
Repeat the inspection from Step 1.
•  If the malfunction recurs, replace the PCM.
Go to the next step.
No
Go to the next step.
11
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
No
DTC troubleshooting completed.
