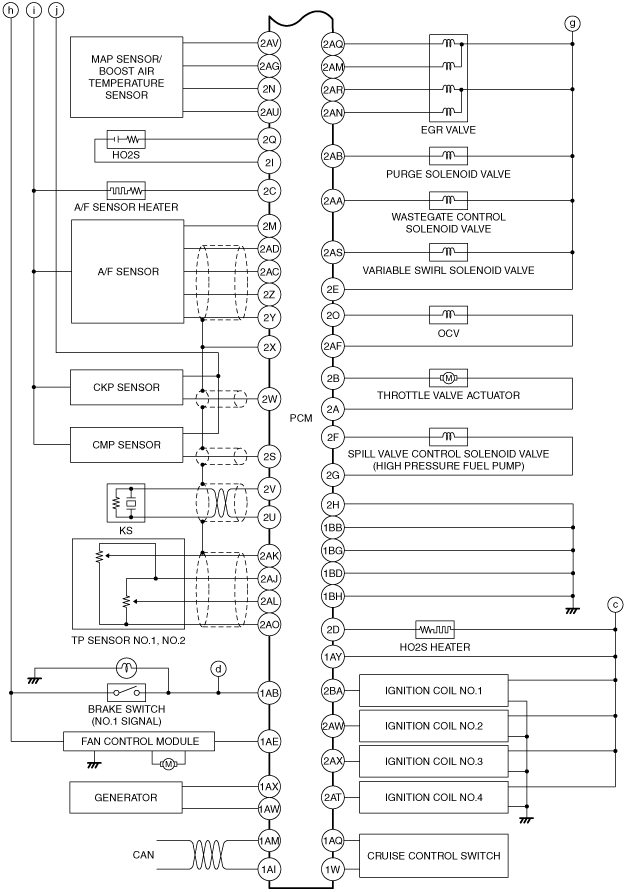

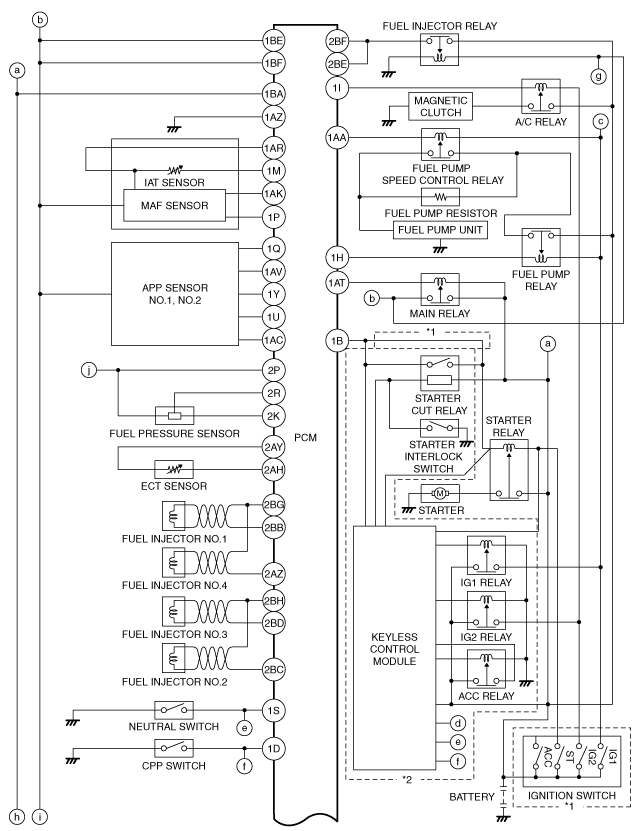

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [MZR 2.3 DISI Turbo]

id0102g4800100

am3zzw00012370

am3zzw00012371

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system
