ON-BOARD DIAGNOSTIC SYSTEM MALFUNCTION DISPLAY FUNCTION [SKYACTIV-G 2.0]

id0102h1142000

Outline

• Illuminates the MIL to notify the driver of a malfunction occurring in the engine control system.

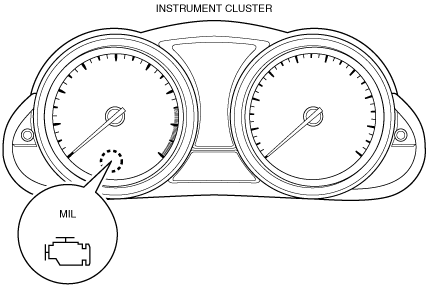

• The MIL is in the instrument cluster.

am3uun00001826

Function

• The MIL illuminates when a malfunction occurs in the engine control system, and it illuminates at the same time a DTC is recorded in the PCM.

• The illumination/non-illumination conditions of the MIL are determined by the number of drive cycles. (See ON-BOARD DIAGNOSTIC SYSTEM TEST MODE [SKYACTIV-G 2.0].)
