ON-BOARD DIAGNOSTIC WIRING DIAGRAM [SKYACTIV-G 2.0]

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [SKYACTIV-G 2.0]

id0102h1800100

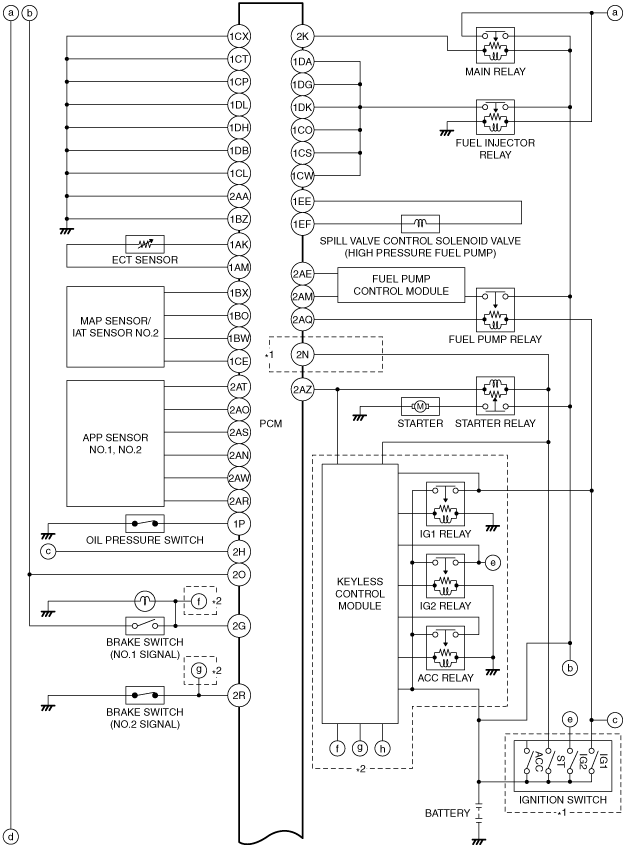

am3zzw00012777

am3zzw00012778

am3zzw00012779

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system
