SYMPTOM TROUBLESHOOTING WIRING DIAGRAM [MZR 1.5, MZR 1.6]

id0103e0800100

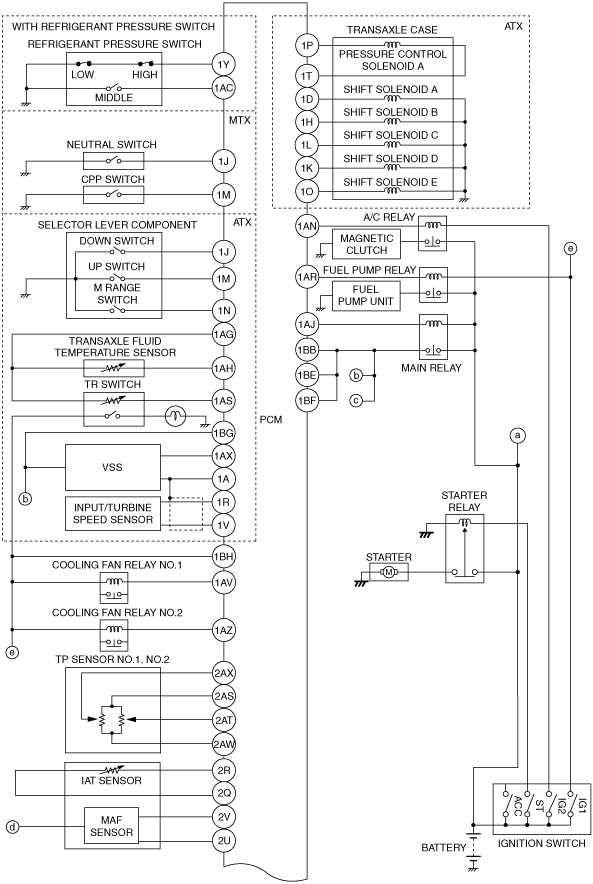

Vehicles Without Immobilizer System

am3zzw00012381

am3zzw00012382

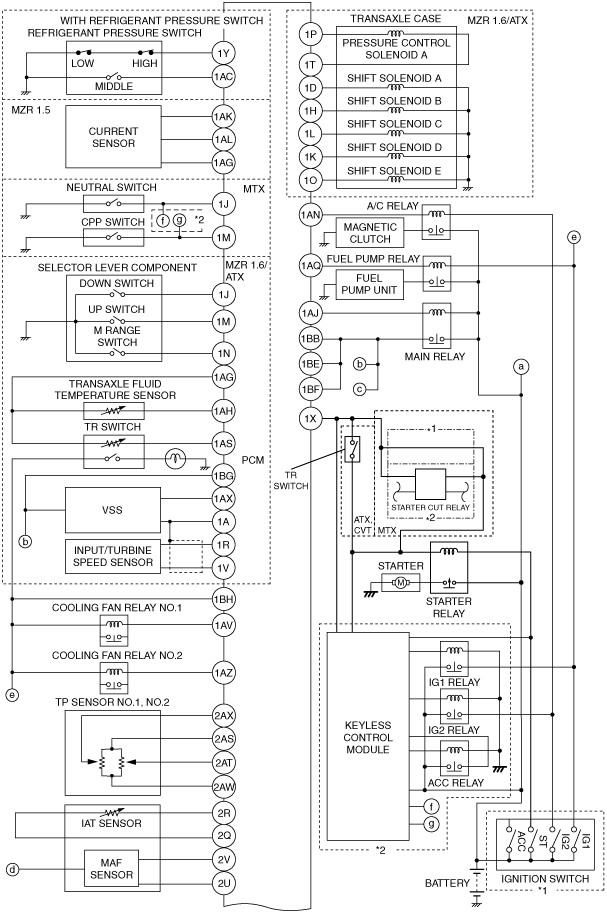

Vehicles With Immobilizer System

am3zzw00012383

am3zzw00012382

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system
